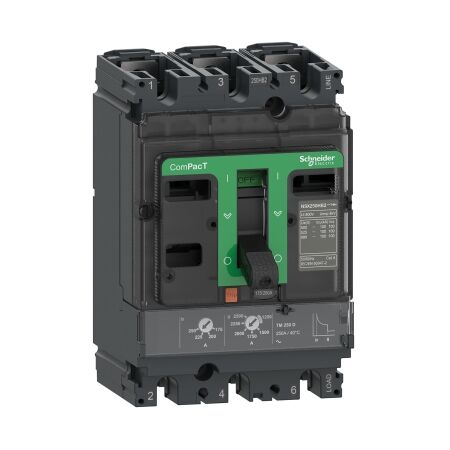

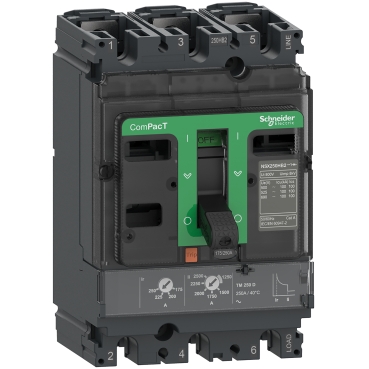

NSX250F Circuit Breaker | 36kA Breaking Capacity | 160A Thermal Magnetic | 3 Pole 3 Direct | @Pack of 1 | by Clipsal
The NSX250F Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. With a 36kA breaking capacity at 415V AC and a 160A rated current, this 3-pole, thermal magnetic breaker ensures safety against overloads and short circuits. Ideal for switchboards and panelboards, it offers robust construction and high reliability for critical infrastructure projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSX250F Circuit Breaker | 36kA Breaking Capacity | 160A Thermal Magnetic | 3 Pole 3 Direct | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25F3TM160
Alternatively Known As: NSX250F Circuit Breaker, 160A MCCB, Schneider NSX250F, 3 Pole 160A Breaker, SCHC25F3TM160
Technical Specifications
- Rated current: 160A
- Breaking capacity: 36kA at 415V AC
- Number of poles: 3
- Trip unit: Thermal Magnetic (TMD)
- Frame size: NSX250F
- Standards: IEC 60947-2
- Mounting: Fixed
- Frequency: 50/60Hz
- Operating voltage: 220-415V AC
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- Rated current: 160A
- Breaking capacity: 36kA at 415V AC
- 3 pole, 3 direct connection (3P3D)
- Thermal Magnetic (TMD) trip unit for overload and short-circuit protection
- Compact NSX250F frame for space-saving installation
- High reliability and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250F 36kA AC 3P3D 160A TMD Circuit Breaker (SCHC25F3TM160) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
