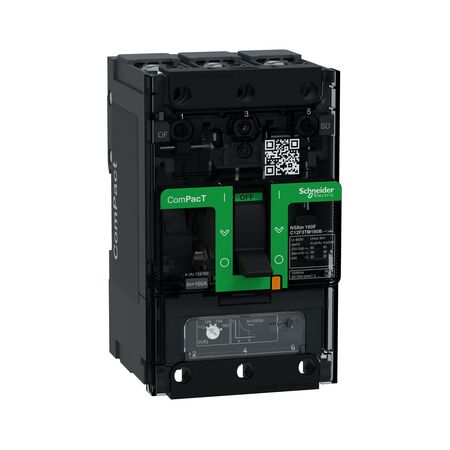

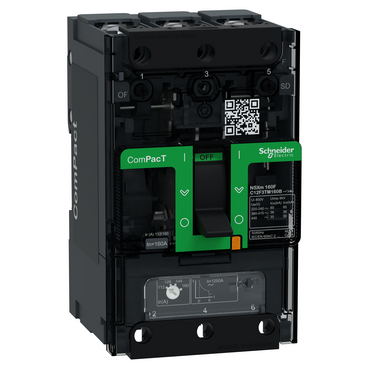

NSXm160F 36kA AC 3P 160A TMD Busbar | Thermal Magnetic Protection | Compact NSXm Frame | by Clipsal
The NSXm160F 36kA AC 3P 160A TMD Busbar is designed for high-capacity circuit protection in commercial and industrial switchboards. With a robust thermal magnetic protection system and a compact NSXm frame, it simplifies wiring and ensures reliable performance. Ideal for electrical distribution boards, this busbar meets IEC standards and is perfect for licensed electricians looking for efficient energy distribution solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NSXm160F 36kA AC 3P 160A TMD Busbar | Thermal Magnetic Protection | Compact NSXm Frame | by Clipsal
Brand: Clipsal
SKU: SCHC12F3TM160B
Alternatively Known As: NSXm160F Circuit Breaker, 160A 3P MCCB, Clipsal 36kA Busbar Breaker, SCHC12F3TM160B
Technical Specifications
- Rated current: 160A
- Number of poles: 3
- Breaking capacity: 36kA at 415V AC
- Protection type: Thermal Magnetic (TMD)
- Frame size: NSXm
- Connection: Busbar
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 130mm x 80mm x 105mm
- Weight: 2.5 kg
Key Features
- Rated current: 160A
- Breaking capacity: 36kA at 415V AC
- 3-pole (3P) configuration
- Thermal Magnetic (TMD) protection
- Compact NSXm frame for space-saving installation
- Busbar connection for simplified wiring
- High reliability and robust construction
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution boards
- Main and sub-main switchboards
- Panelboards requiring high short-circuit protection
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy distribution, reducing electrical losses.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer warranty against defects.
Available Now
The Clipsal NSXm160F 36kA AC 3P 160A TMD Busbar is available for immediate purchase. Ideal for commercial and industrial switchboards requiring high-capacity circuit protection.
