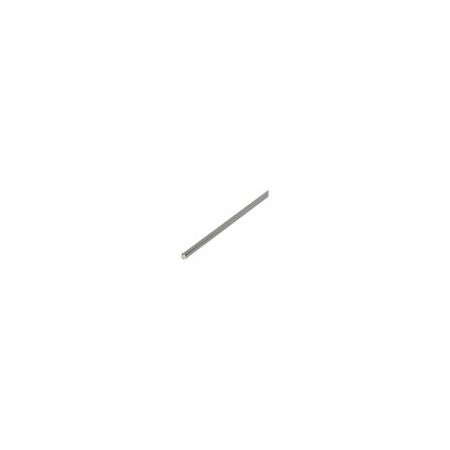

NZM Extension Shaft for Eaton Moeller Circuit Breakers | 600 mm Mounting Depth | 425 mm Length | Corrosion Resistant by Eaton
The NZM extension shaft is designed for Eaton Moeller circuit breakers, offering a maximum mounting depth of 600 mm and a customizable length of 425 mm. Ideal for electrical panel builders and installers, it ensures compliance with local standards while providing durability and efficiency in installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NZM Extension Shaft for Eaton Moeller Circuit Breakers | 600 mm Mounting Depth | 425 mm Length | Corrosion Resistant by Eaton
Brand: Eaton
SKU: Y7-260193
Alternatively Known As: NZM Extension Shaft, Molded Case Circuit Breaker Extension, NZM3/4 Extension Accessory
Technical Specifications
- Product Length/Depth: 425 mm
- Cross Section Height: 12 mm
- Cross Section Width: 12 mm
- Maximum mounting depth: 600 mm
- Weight: 0.408 kg
- Compliances: UL/CSA IEC RoHS conform
- Fitted with: Extension shaft, 1 pc
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and mechanical function
- Dimensions (H x L x W): 12mm x 425mm x 12mm
- Weight: 0.408 kg
Key Features
- Extension shaft accessory for Eaton Moeller NZM series molded case circuit breakers
- Maximum mounting depth of 600 mm
- Length 425 mm, can be cut to desired length
- Cross section dimensions: 12 mm x 12 mm
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and mechanical function
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with molded case circuit breaker systems and compliance with local electrical standards.
Applications
- Used with NZM3(-4), NZM4(-4), N(S)3(-4), N(S)4(-4), PN3(-4) molded case circuit breakers
- Extension shaft for circuit breaker installations requiring up to 600mm mounting depth
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical installations reducing energy losses
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as per Eaton standard product warranty policies.
Available Now
The Eaton Moeller NZM3/4-XV6 Extension Shaft is available now for immediate purchase. Ideal for electrical panel builders and installers requiring extended mounting depth for NZM series circuit breakers.
