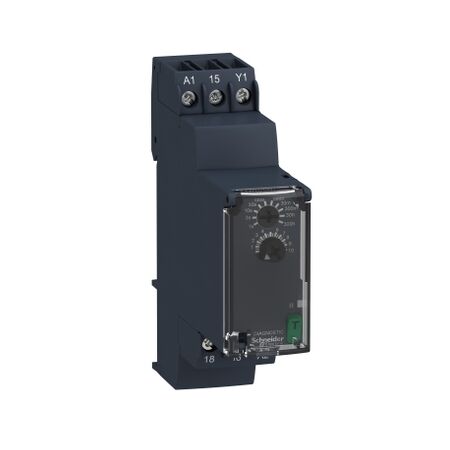

On Delay Timer | Adjustable Time Range 0.05s to 300h | 24–240V AC/DC | DIN Rail Mountable | @Pack of 1 | by Clipsal
The On Delay Timer is designed for precise control in industrial automation, featuring an adjustable time range from 0.05 seconds to 300 hours. With a wide supply voltage of 24–240V AC/DC and a single changeover (SPDT) contact output, it's perfect for lighting control circuits and HVAC systems. Its compact design allows for easy DIN rail mounting, making it an ideal choice for building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On Delay Timer | Adjustable Time Range 0.05s to 300h | 24–240V AC/DC | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R1AMR
Alternatively Known As: On Delay Timer Relay, Time Delay Relay, SCHRE22R1AMR Timer, Clipsal Timing Relay, Schneider RE22R1AMR
Technical Specifications
- Type: On-delay timing relay
- Time range: 0.05 seconds to 300 hours (selectable)
- Supply voltage: 24–240V AC/DC
- Output contacts: 1 C/O (SPDT), 8A at 250V AC
- Mounting: DIN rail
- Status indication: LED for power and relay output
- Operating temperature: -20°C to +50°C
- IP rating: IP20 (housing), IP40 (front panel)
- Dimensions (H x L x W): 85mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- On-delay timing relay with adjustable time range from 0.05 seconds to 300 hours
- Wide supply voltage range: 24–240V AC/DC
- 1 changeover (SPDT) contact output
- DIN rail mountable for easy installation
- LED status indicators for power and relay output
- Compact design for control panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control circuits
- HVAC systems
- Pumping and motor control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in control systems
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal On Delay Timer SCHRE22R1AMR is available for immediate purchase. Ideal for industrial automation, lighting control, and building management applications.
