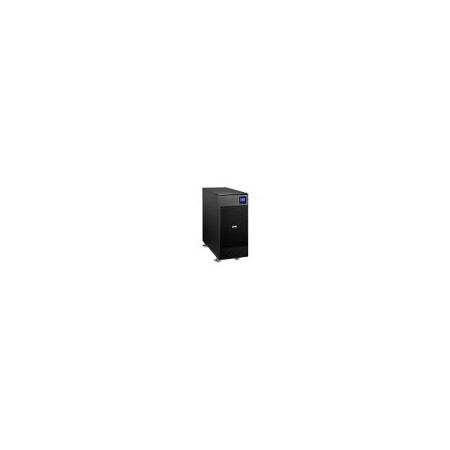

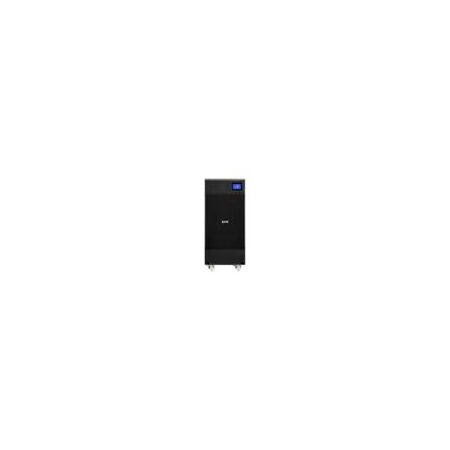

On Line Tower UPS 6000VA/5400W | Online/Double-Conversion | Hot Swappable Batteries | Low Noise by Eaton
Ensure reliable power with the Eaton 9SX 6000VA/5400W On Line Tower UPS, featuring online double-conversion topology and hot swappable batteries—ideal for data centers and critical systems. Built for industrial and commercial applications, it offers low noise operation and extended battery capability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: On Line Tower UPS 6000VA/5400W | Online/Double-Conversion | Hot Swappable Batteries | Low Noise by Eaton
Brand: Eaton
SKU: 9104-12892
Alternatively Known As: Eaton 9SX UPS Tower 6000VA, Eaton 9SX 6000VA UPS, Eaton 9SX On Line UPS 5400W, Eaton 9SX Tower UPS 240V
Technical Specifications
- Topology: Online/Double-conversion
- Form factor: Tower, free standing
- VA rating: 6000 VA
- Wattage: 5400 W
- Input nominal voltage: 240V
- Input frequency range: 40-70 Hz
- Output nominal voltage: 240V AC
- Output waveform: Sine wave
- Output frequency: 50/60 Hz
- Output power factor: 0.9
- Phase input/output: Single-phase
- Input voltage range: 180-276 Vac without derating
- Internal bypass: Yes
- Battery type: Sealed, lead-acid
- Battery replacement: Hot swappable
- Extended battery capability: Yes
- Noise level: <45 dB at 1 meter
- Operating temperature range: 0° to 40°C
- Relative humidity: 0-96% non-condensing
- Altitude: <1000m for nominal power, 10% power degrading every 1000m up to 3000m
- Dimensions (H x L x W): 575mm x 244mm x 542mm
- Weight: 21.9 kg
Key Features
- Online/Double-conversion topology for continuous power conditioning
- Multilingual graphical LCD display for easy monitoring
- Input and output hardwire connections
- Internal bypass for maintenance without power interruption
- Hot swappable sealed lead-acid battery replacement
- Extended battery capability with optional external battery packs
- One expansion slot for optional communication card
- Compatible with Eaton Intelligent Power Manager and Intelligent Power Protector software
- Low noise level under 45 dB at 1 meter
- Wide input voltage range: 180-276 Vac without derating
Professional Installation Requirements
- Professional installation by qualified electrical technicians is required to ensure proper hardwire connections and compliance with local electrical codes.
Applications
- Data centers and server rooms requiring reliable power backup
- Telecommunications equipment protection
- Industrial and commercial critical systems
- Medical and laboratory equipment requiring clean power
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient online double-conversion technology reduces power loss
- Extended battery life and hot swappable batteries reduce electronic waste
- Supports extended battery packs for longer runtime, minimizing downtime and resource waste
Warranty Information
Standard Eaton warranty applies; typically 2 years covering manufacturing defects and performance issues.
Available Now
The Eaton 9SX 6000VA/5400W On Line Tower UPS is available now for immediate purchase. Ideal for critical power protection in data centers, industrial, and commercial applications.
