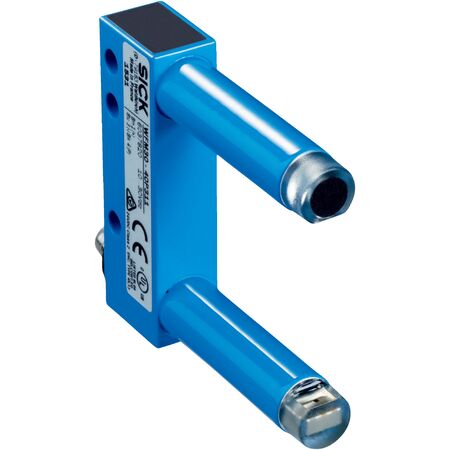

Optical Fork Sensor WFM30-40P111 IP67 Rated 4 kHz Switching Frequency SICK

BRAND: SICK
SKU: 6052441
$383.80 List price: $482.40
+ −
30 Days Return Electricians Unlock Trade Access
The Optical Fork Sensor WFM30-40P111 is designed for precise object detection in industrial automation
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: < 20 mA
  • Switching frequency: 4 kHz
  • Response time: ≤ 125 µs
  • Switching output: PNP with max output current 100 mA
  • Enclosure rating: IP67
  • Housing material: Aluminum
  • Connection type: 3-wire cable, 2 m length
  • Ambient operating temperature: -10 °C to +60 °C
  • Storage temperature: -40 °C to +80 °C
  • Ambient light immunity: ≤ 10,000 lx
  • Shock load compliant with EN 60068-2-27
  • Protection class: III
  • Dimensions (H x L x W): 50mm x 60mm x 10mm
  • Weight: 0.135 kg
Key Features
  • Optical detection principle with LED red light source
  • Fork width of 30 mm and fork depth of 42 mm
  • Minimum detectable object size of 0.8 mm
  • High switching frequency of 4 kHz and fast response time ≤ 125 µs
  • IP67 rated enclosure for dust and water protection
  • Reverse polarity and short-circuit protected circuitry
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Safety and monitoring in manufacturing lines
  • Material handling and packaging systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption with supply voltage from 10 V DC to 30 V DC
  • Durable aluminum housing extends product life reducing waste
  • High reliability reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific terms.

Available Now

The SICK WFM30-40P111 Optical Fork Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
