Trade Discount 17%

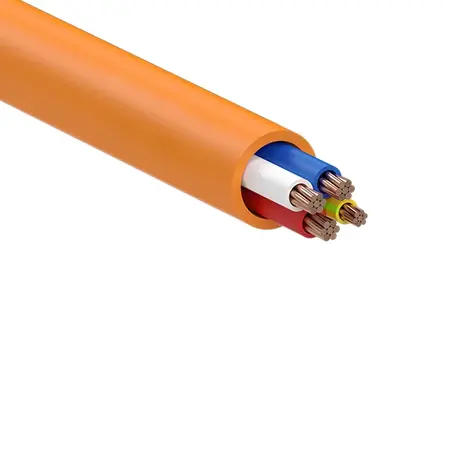

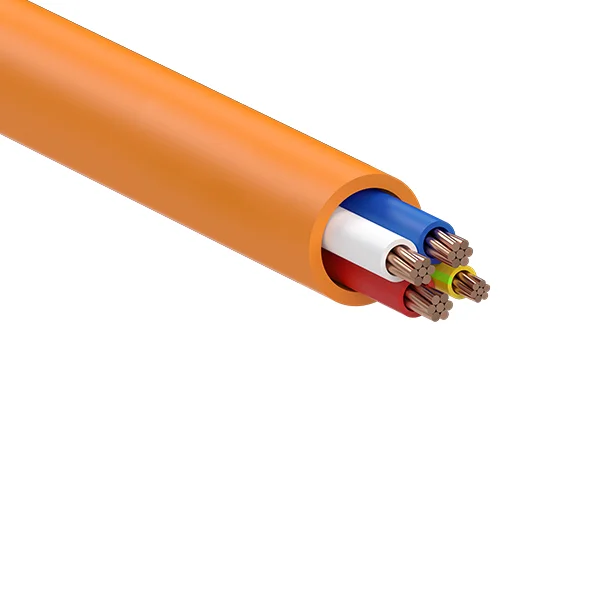

Orange Circular Cable 0.6/1kV 3C+E 2.5mm | LSZH Insulation | Flexible Design | 500m Length | Per 10m by Eltech
Orange circular cable with 0.6/1kV voltage rating and 3 cores plus earth—ideal for residential, commercial, and industrial power installations. Built for safety with low smoke zero halogen insulation, this flexible cable ensures compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Orange Circular Cable 0.6/1kV 3C+E 2.5mm – LSZH
Brand: Eltech
SKU: ELT3025E-ENV
Alternatively Known As: Orange Power Cable 2.5mm 3 Core Earth LSZH, Low Smoke Zero Halogen Power Cable, 0.6/1kV Electrical Cable
Technical Specifications
- Voltage Rating: 0.6/1kV
- Conductor Size: 2.5mm²
- Cores: 3C+E (3 cores plus earth)
- Insulation: Low Smoke Zero Halogen (LSZH)
- Colour: Orange
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 0.5 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety in case of fire
- Orange circular cable with 3 cores plus earth (3C+E)
- Voltage rating of 0.6/1kV suitable for power distribution
- Flexible and durable design for various installation environments
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and regulations.
Applications
- Electrical wiring for residential, commercial, and industrial power installations
- Suitable for fixed wiring in buildings and electrical equipment requiring low smoke zero halogen cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and corrosive gases in fire situations, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Orange Circular Cable 0.6/1kV 3C+E 2.5mm LSZH is available for immediate purchase, ideal for power cable installations in residential, commercial, and industrial applications.
