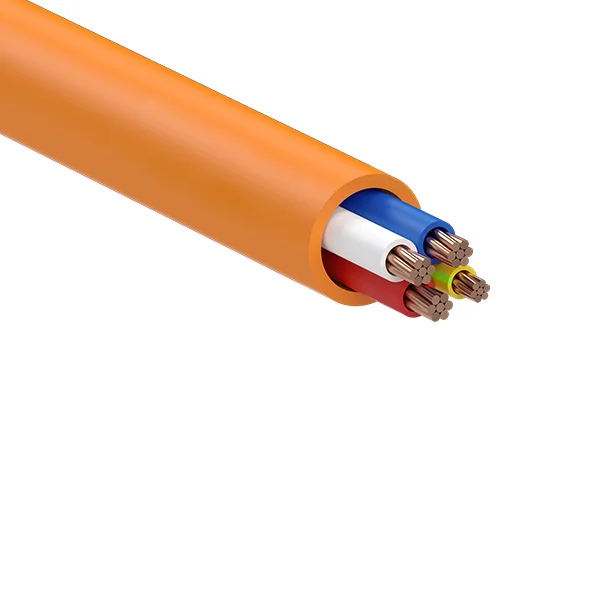

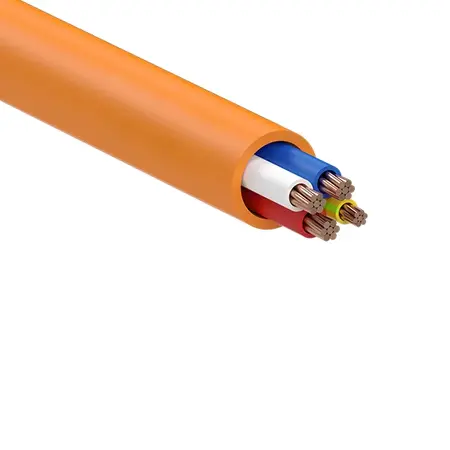

Orange Circular Cable 0.6/1kV 3C+E 4.0mm | LSZH Insulation | Flexible & Durable Design | Per 10m by Eltech
Orange circular cable rated for 0.6/1kV with 3 cores plus earth (3C+E) and low smoke zero halogen (LSZH) insulation—ideal for power distribution in residential, commercial, and industrial installations. Built for safety and flexibility, this cable is perfect for environments requiring reduced smoke emissions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Orange Circular Cable 0.6/1kV 3C+E 4.0mm – LSZH
Brand: Eltech
SKU: ELT3040E-ENV
Alternatively Known As: Orange Power Cable 4mm LSZH, 3 Core Earth Cable, Low Smoke Zero Halogen Power Cable
Technical Specifications
- Voltage Rating: 0.6/1kV
- Conductor Size: 4.0mm²
- Cores: 3C+E (3 cores plus earth)
- Insulation: Low Smoke Zero Halogen (LSZH)
- Colour: Orange
- Drum Length: 500m
- Minimum Order Quantity: 10m increments
- Dimensions (H x L x W): 10mm x 500000mm x 10mm
- Weight: 0.5 kg
Key Features
- Low Smoke Zero Halogen (LSZH) insulation for enhanced safety in case of fire
- Orange circular cable with 3 cores plus earth (3C+E)
- Rated for 0.6/1kV voltage applications
- Flexible and durable design suitable for various electrical installations
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with electrical safety standards and regulations.
Applications
- Power distribution in residential, commercial, and industrial installations
- Suitable for fixed wiring in electrical installations
- Ideal for use in environments requiring low smoke zero halogen cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LSZH insulation reduces toxic smoke and corrosive gases in case of fire, improving safety and environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech Orange Circular Cable 0.6/1kV 3C+E 4.0mm LSZH is available for immediate purchase, ideal for power cable applications in residential, commercial, and industrial electrical installations.
