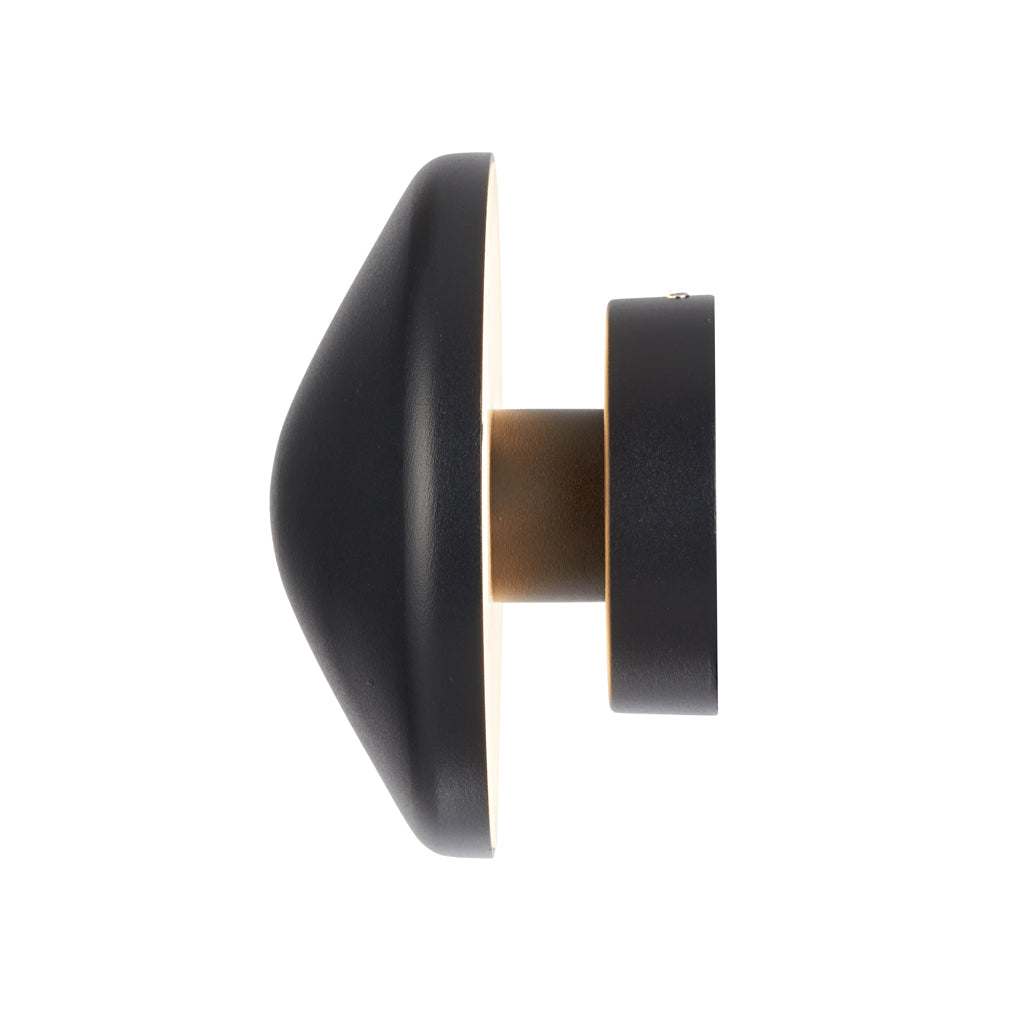

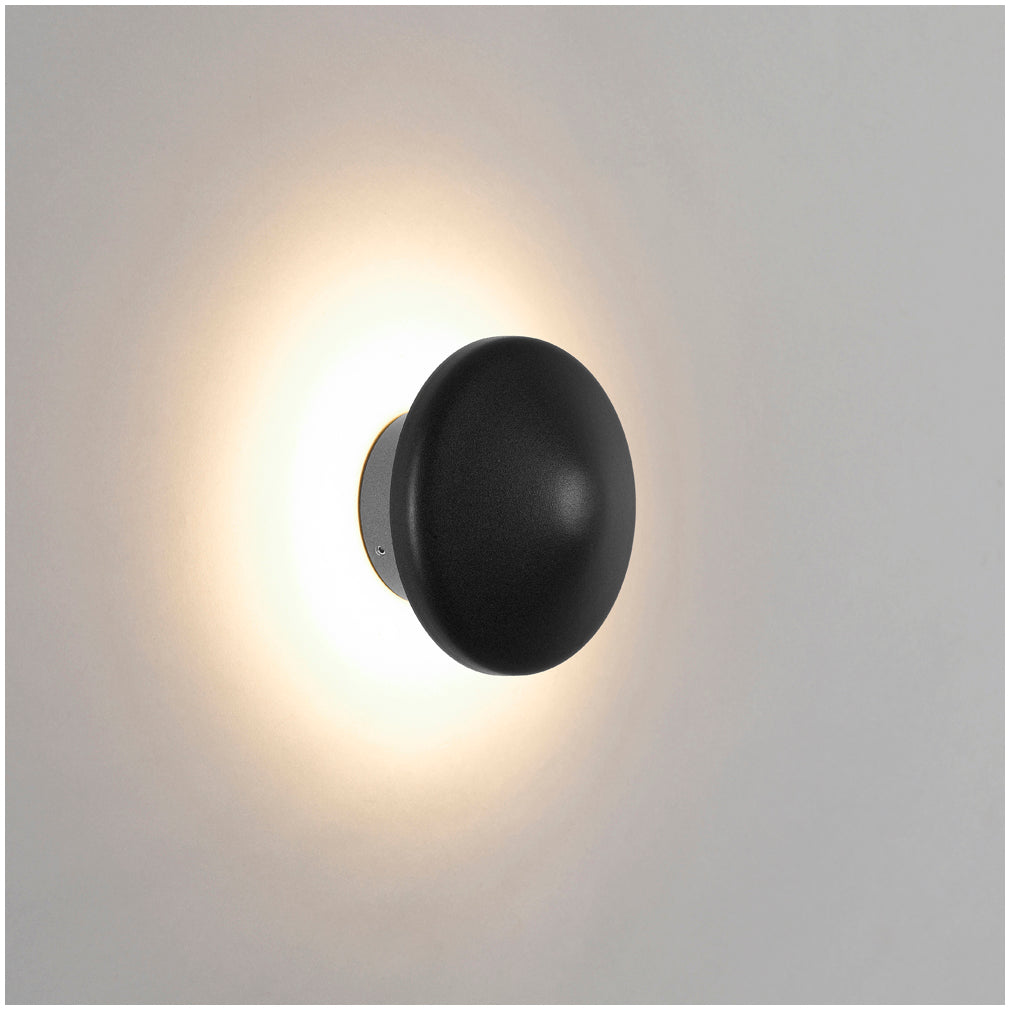

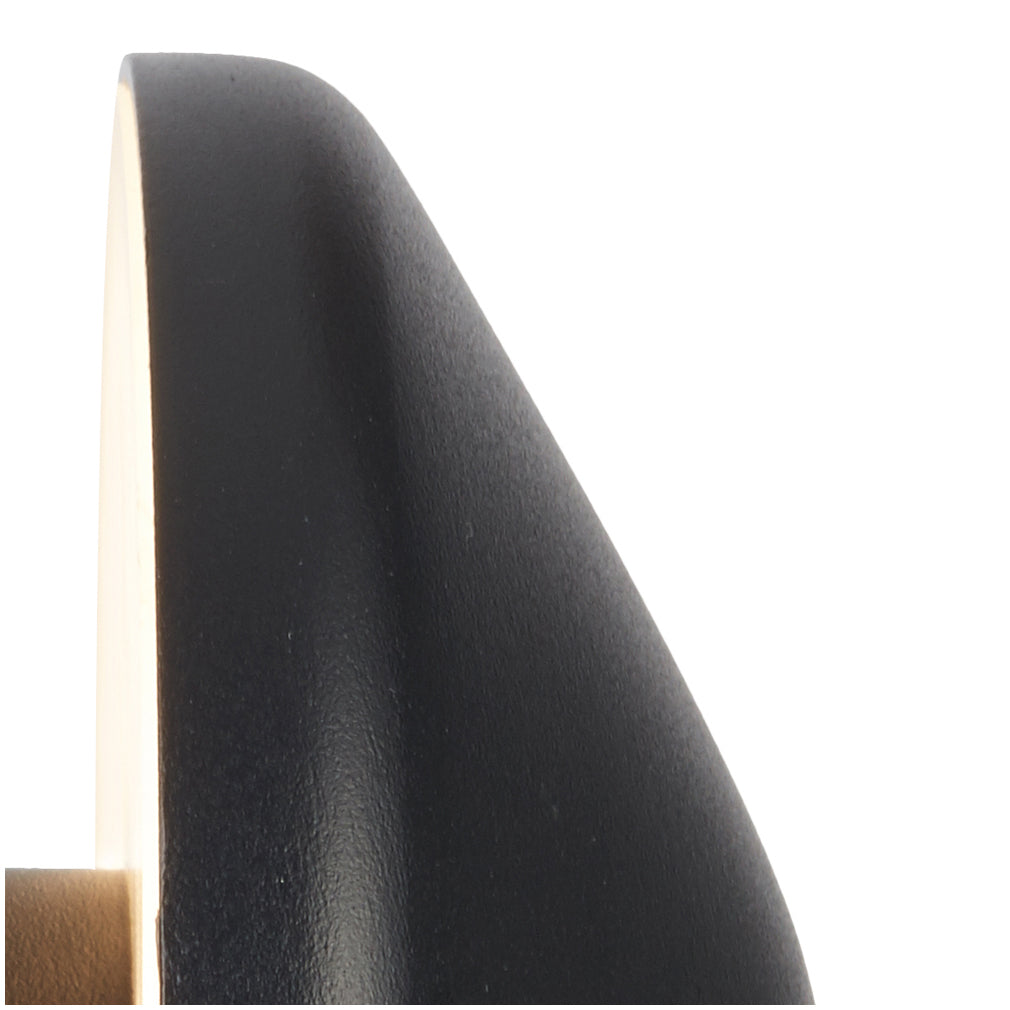

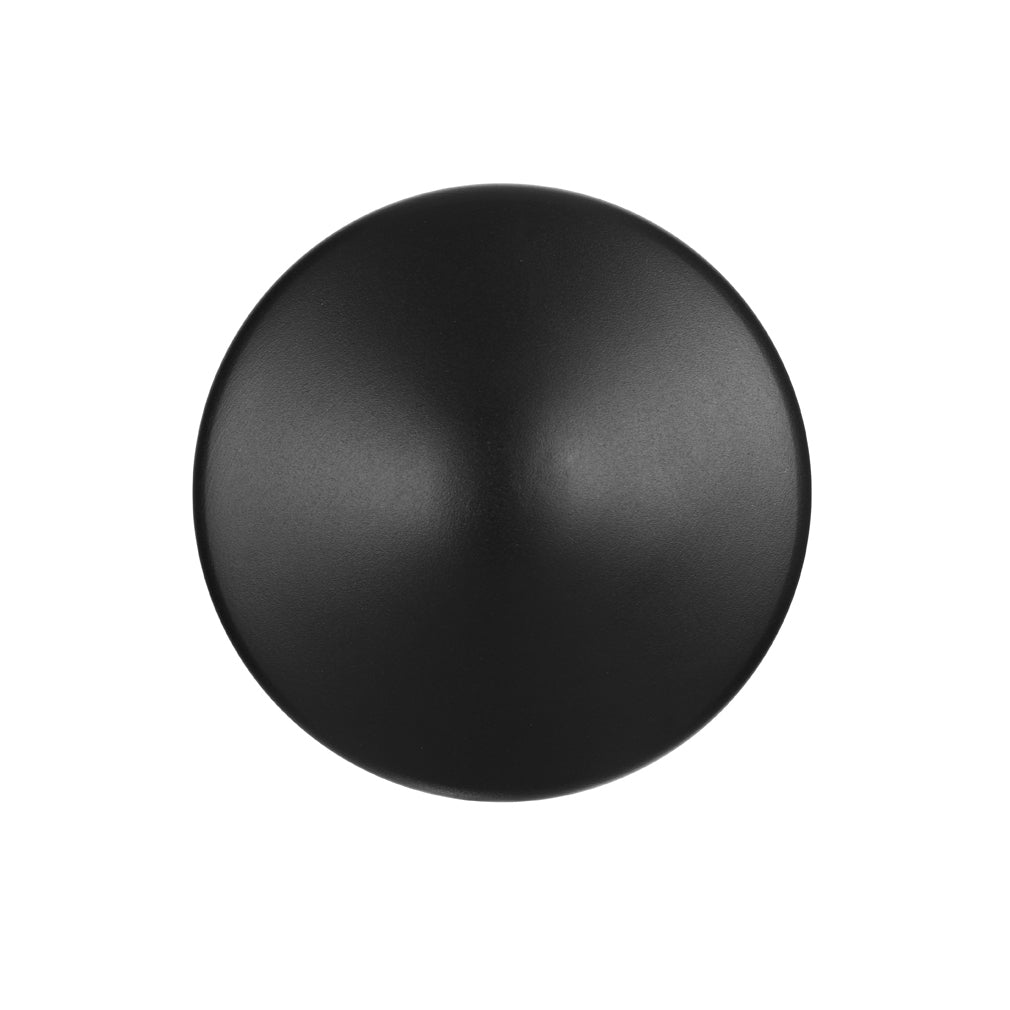

Outdoor Wall Light 24V LED 3W IP65 Black Shea Telbix
Telbix Shea 24V outdoor wall light features 3W COB LED, 150lm, IP65 rating, 110mm diameter and 300mm cable in black. Ideal for low-voltage garden schemes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Shea Exterior LED Wall Light, Shea Low-Voltage Outdoor Wall Light, SHEA EX3-BK324
Technical Specifications
- Input Voltage: 24V DC
- Total Wattage: 3W maximum
- Light Source: Integrated COB LED
- Colour Temperature: 3000K warm white
- Light Output: 150 lm
- IP Rating: IP65
- Electrical Protection: Class III extra-low voltage
- Dimmable: No
- Cable Length: 300mm
- Fixture Material: Aluminium and polycarbonate
- Fixture Finish: Sand black
- Approvals: RCM
- Driver Requirement: Requires a compatible 24V driver; Telbix options include C TR060.24V IP68 and C TR200.24V IP68
- Dimensions (H x L x W): 110mm x 71mm x 110mm
- Weight: 0.25 kg
Key Features
- Integrated 3000K LED light source
- Low-voltage 24V operation for outdoor lighting systems
- IP65 protection against dust and water jets
- Compact round wall-light design
- Supplied with a 300mm installation cable
- Black finish suitable for exterior walls, gardens and landscape schemes
- Driver required and sold separately
- Non-dimmable
Professional Installation Requirements
- Installation should be completed by a licensed electrician in accordance with AS/NZS 3000. A compatible 24V driver is required, and the fitting must not be connected directly to mains voltage.
Applications
- Outdoor residential wall lighting
- Garden and landscape lighting schemes
- Patios, pathways and entryways
- Exterior feature lighting
- Low-voltage architectural lighting
Standards & Compliance
- AS/NZS 60598.1 for general luminaire safety requirements and tests
- AS/NZS 60598.2.1 for fixed general-purpose luminaires
- AS/NZS 3000 for electrical installation and wiring requirements
Environmental Benefits
- Integrated LED technology provides low power consumption at 3W
- LED light sources generally offer a long service life, reducing replacement frequency and waste
- Aluminium components are recyclable at end of service life
- Low-voltage operation is suitable for efficient outdoor lighting systems
Warranty Information
Three-year replacement warranty for manufacturing defects, subject to Telbix warranty terms, correct installation and applicable Australian Consumer Law. Installation and electrician costs are generally excluded.
Available Now
Available through Telbix and authorised Australian lighting distributors, subject to current distributor stock.
