Trade Discount 25%

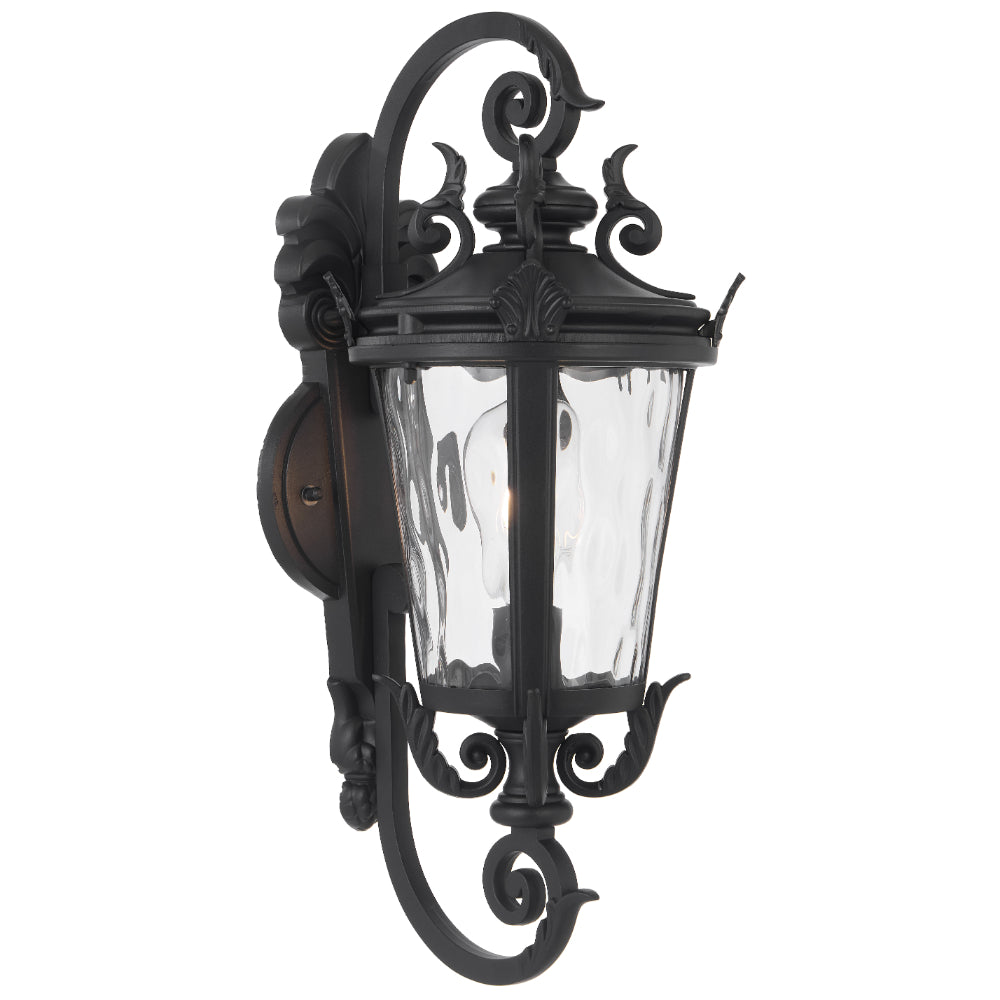

Outdoor Wall Light E27 IP44 540mm Black Clear Pedral Telbix
Telbix Pedral outdoor wall bracket features E27 socket for max 25W lamp, IP44 rating and 540mm height in black with clear water glass. Ideal for entrances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Pedral 23 Exterior Wall Bracket, Telbix Pedral Coach Wall Light, PEDRAL EX23-BK
Technical Specifications
- Model: PEDRAL EX23-BK
- Input Voltage: 240V
- Globe Type: E27 / ES Edison screw
- Globe Quantity: 1
- Maximum Wattage: 25W
- Globe Included: No
- Dimming: Globe dependent
- IP Rating: IP44
- Electrical Protection: Class I, earth required
- Material: Aluminium and glass
- Finish: Black with clear textured glass
- Usage: Outdoor covered areas
- Approvals: RCM
- Backplate Width: 140 mm
- Dimensions (H x L x W): 540mm x 280mm x 230mm
- Weight: 2.5 kg
Key Features
- Traditional coach-style outdoor wall light design
- Black aluminium frame with clear textured water glass
- Single E27 lamp holder supports a replaceable globe
- IP44 protection against solid objects and water splashes
- Suitable for entrances, verandas, patios and covered outdoor walls
- Globe-dependent dimming capability
- Designed for wall mounting
- Assembly required
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000. The fitting is Class I and requires an earth connection. Use only in suitable covered outdoor locations consistent with the IP44 rating.
Applications
- Residential entryways and front doors
- Covered verandas and patios
- Outdoor entertaining areas
- Covered walkways and corridors
- Commercial building entrances and facades
- Decorative garden and boundary walls
Standards & Compliance
- RCM approved for the Australian market
- Installation in accordance with AS/NZS 3000 Wiring Rules
- Applicable luminaire safety requirements under AS/NZS 60598.1
Environmental Benefits
- Replaceable E27 globe design can extend the service life of the fitting without replacing the complete luminaire
- Aluminium and glass components are recyclable at end of life where appropriate recycling facilities are available
- Supports the use of energy-efficient LED E27 globes
- Durable construction may reduce replacement frequency and material waste
Warranty Information
Three-year replacement warranty against manufacturing defects, subject to Telbix warranty terms. Installation must be completed by a licensed electrician; labour and installation costs are generally excluded.
Available Now
Available through Telbix and authorised Australian lighting distributors, subject to distributor stock and ordering arrangements.
