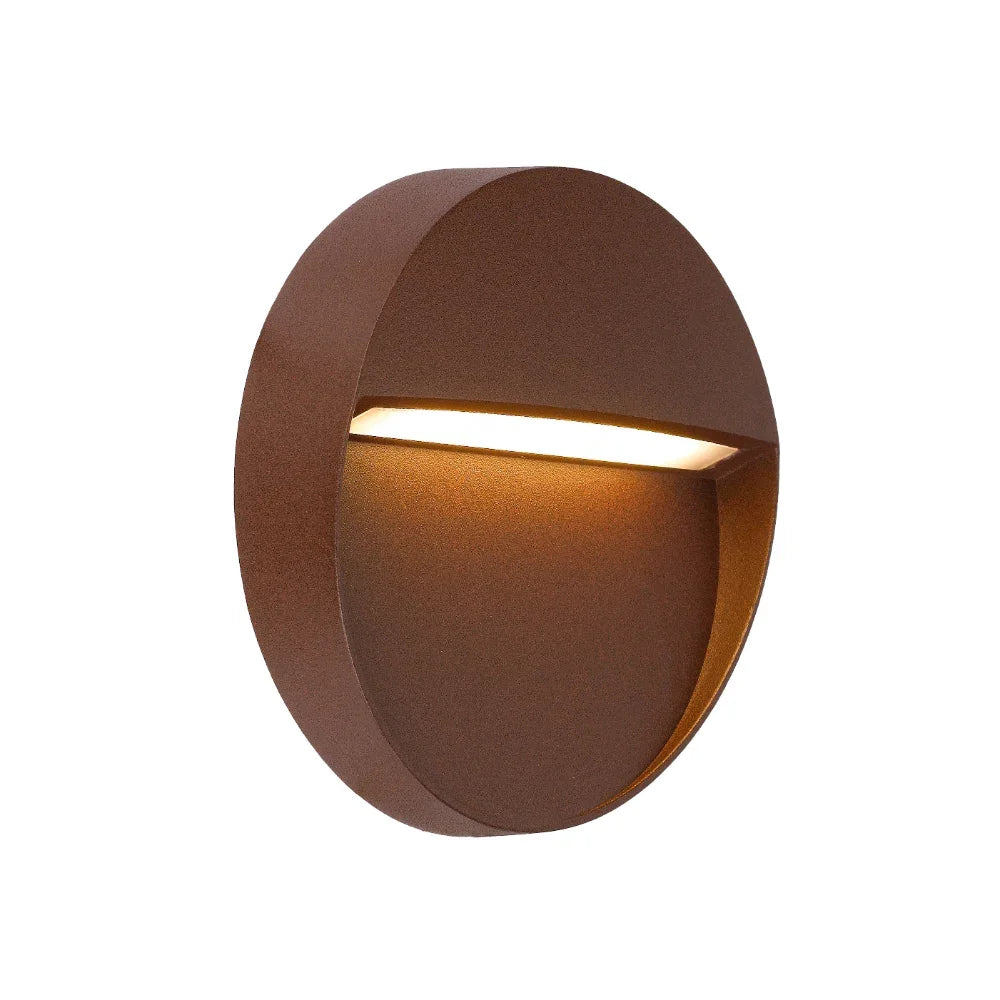

Outdoor Wall Light Round LED 3W 24V 3000K Corten Rust Terin Telbix

BRAND: Telbix
SKU: TERIN RD-RST324
$58.60 List price: $78.20
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Terin round exterior wall lamp features 3W LED 24V 3000K 120lm, IP65 rating and 300mm cable, 120mm diameter in corten rust. Ideal for facades.

Alternatively Known As: Telbix Terin Round Wall Light, Terin Exterior Wall Light, Terin LED Step Light, TERIN RD-RST324

Technical Specifications
  • Model: TERIN RD-RST324
  • Input Voltage: 24V DC
  • Maximum Wattage: 3W
  • Light Source: Integrated SMD LED
  • Luminous Output: 120 lm
  • Colour Temperature: 3000K warm white
  • Dimming: Non-dimmable
  • IP Rating: IP65
  • Electrical Protection: Class III low voltage, under 54V
  • Mounting: Surface mounted
  • Materials: Aluminium and polycarbonate
  • Finish: Sand
  • Colour: Corten rust
  • Driver: Required, not included; compatible with C TR060.24V IP68 or C TR200.24V IP68
  • Approvals: RCM
  • Cable: 300 mm
  • Dimensions (H x L x W): 120mm x 30mm x 120mm
  • Weight: 0.22 kg
Key Features
  • Round exterior wall light for facades, garden walls and outdoor landscaping
  • Integrated 3W LED light source included
  • Warm white 3000K light with 120 lumen output
  • IP65-rated enclosure for dust protection and water-jet resistance
  • Low-voltage 24V DC operation for outdoor lighting systems
  • Class III electrical protection
  • Corten rust finish with aluminium and polycarbonate construction
  • Surface-mounted design with 30 mm projection
  • Three-year replacement warranty
Professional Installation Requirements
  • Installation must be performed by a licensed electrician. A compatible 24V DC driver is required and must be installed in accordance with AS/NZS 3000 and the manufacturer's instructions. The fitting must not be connected directly to mains voltage.
Applications
  • Exterior wall and facade lighting
  • Garden walls, fences and landscaping features
  • Pathway and step guidance lighting
  • Outdoor architectural feature lighting
  • Residential and commercial low-voltage lighting systems
Standards & Compliance
  • RCM approval stated by the manufacturer
  • AS/NZS 60598.1:2017, Luminaires - General requirements and tests
  • AS/NZS 60598.2.1:2014, Luminaires - Particular requirements for fixed general purpose luminaires
  • AS/NZS 3000:2018, Electrical installations - Wiring Rules, for installation
Environmental Benefits
  • Integrated LED technology provides efficient illumination with a lower power demand than many conventional light sources
  • Low-voltage Class III operation can support safer, efficient outdoor lighting system design
  • Aluminium components are recyclable at end of service life
  • Long-life integrated LED construction can reduce lamp replacement frequency and associated waste
Warranty Information

Three-year replacement warranty covering the Telbix product in accordance with the manufacturer's warranty terms. Installation must be completed by a licensed electrician; labour and installation costs are generally excluded.

Available Now

Available through Telbix and authorised Australian lighting distributors, subject to distributor stock levels.
