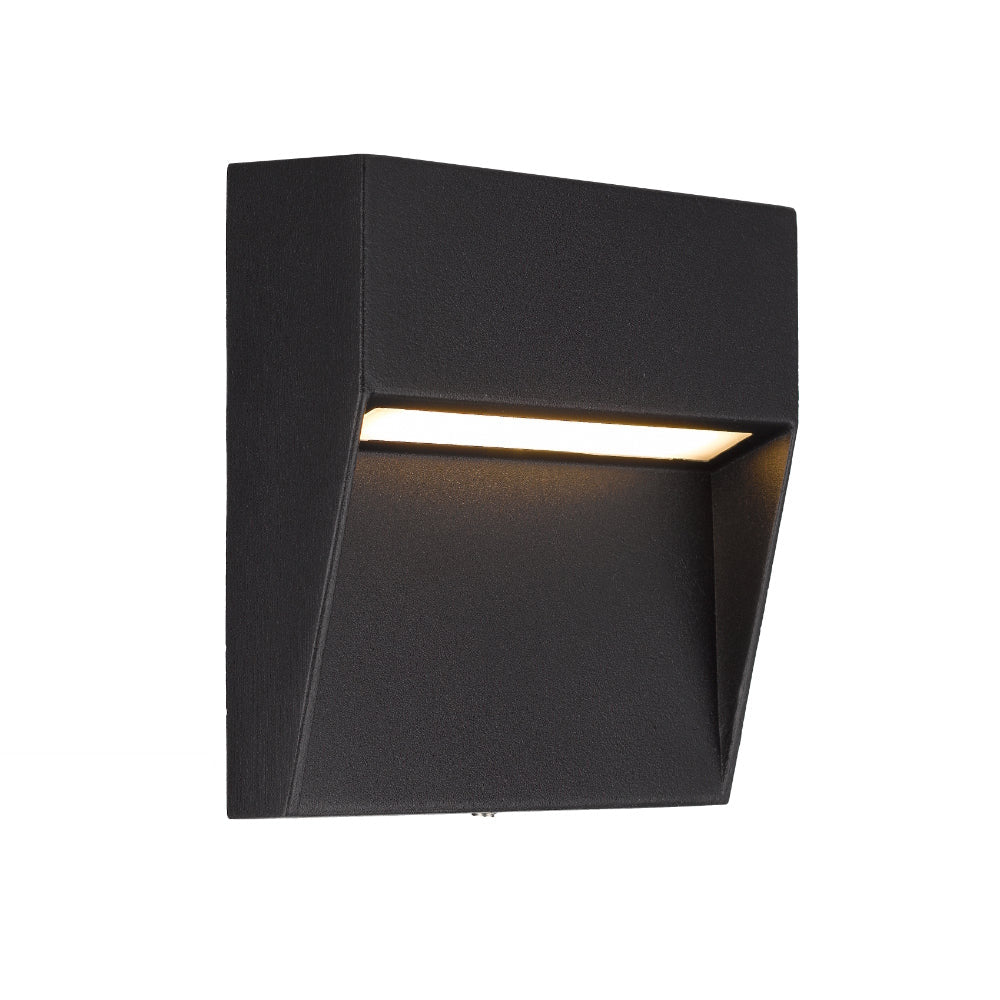

Outdoor Wall Light Square LED 3W 24V 3000K Black Terin Telbix

BRAND: Telbix
SKU: TERIN SQ-BK324
$58.60 List price: $78.20
+ −
30 Days Return Electricians Unlock Trade Access
Telbix Terin square exterior wall lamp features 3W LED 24V 3000K 120lm, IP65 rating and 300mm cable, 110mm x 110mm in black. Ideal for facades and entries.

Alternatively Known As: Telbix Terin Square Wall Light, Terin SQ-BK324, Outdoor LED Wall Light, Exterior Facade Light

Technical Specifications
  • Model: TERIN SQ-BK324
  • Light Source: Integrated SMD LED
  • Input Voltage: 24V DC
  • Power: 3W
  • Light Output: 120 lm
  • Colour Temperature: 3000K warm white
  • Ingress Protection: IP65
  • Electrical Protection: Class III low voltage, below 54V
  • Material: Aluminium and polycarbonate
  • Finish: Black sand finish
  • Cable Length: 300mm
  • Driver: Required separately; compatible with Telbix C TR060.24V IP68 or C TR200.24V IP68
  • Dimming: Not dimmable
  • Approvals: RCM
  • Dimensions (H x L x W): 110mm x 30mm x 110mm
  • Weight: 0.3 kg
Key Features
  • Compact 110mm square exterior wall light
  • Integrated 3W LED provides warm 3000K illumination
  • IP65 rated for outdoor wall and facade applications
  • Low-voltage 24V operation for garden and architectural lighting systems
  • Slim 30mm projection from the wall
  • Black sand-finish aluminium and polycarbonate construction
  • Suitable for facades, entryways, garden walls, pathways and garden surrounds
  • LED light source included
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000. A compatible 24V driver is required separately; do not connect the fitting directly to mains voltage.
Applications
  • Exterior facades and building entries
  • Garden walls, pathways and landscaping
  • Outdoor architectural feature lighting
  • Gateways, fences, piers and step edges
  • Low-voltage garden lighting systems
Standards & Compliance
  • Installation in accordance with AS/NZS 3000 Wiring Rules
Environmental Benefits
  • Low 3W power consumption helps reduce operating energy use compared with higher-wattage exterior luminaires
  • Integrated LED technology avoids regular globe replacement and can reduce maintenance-related waste
  • Aluminium construction is recyclable at end of service life
  • Long-life solid-state LED design can reduce replacement frequency
Warranty Information

3-year replacement warranty. Telbix warranty coverage applies to manufacturing defects and defects in materials or workmanship; installation must be completed by a licensed electrician.

Available Now

Available through Telbix and authorised Australian lighting distributors.
