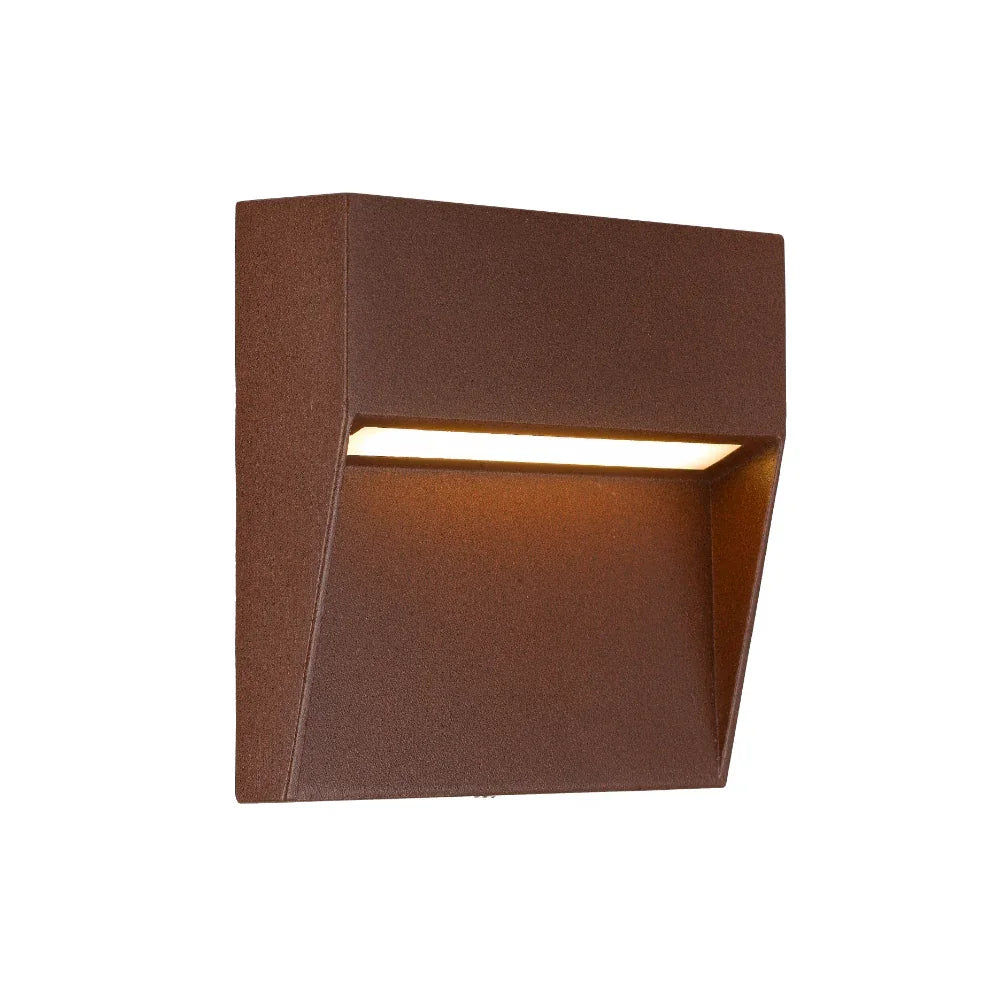

Outdoor Wall Light Square LED 3W 24V 3000K Corten Rust Terin Telbix
Telbix Terin square exterior wall lamp features 3W LED 24V 3000K 120lm, IP65 rating and 300mm cable, 110mm x 110mm in corten rust. Ideal for facades.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Terin SQ-RST324, Terin 24V Exterior Square Wall Light, Corten Rust LED Wall Light
Technical Specifications
- Model: TERIN SQ-RST324
- Input Voltage: 24V DC
- Power: 3W maximum
- Light Source: Integrated SMD LED
- Luminous Output: 120 lm
- Colour Temperature: 3000K warm white
- Dimmable: No
- Ingress Protection: IP65
- Electrical Protection: Class III low voltage
- Material: Aluminium and polycarbonate
- Finish: Sand-textured corten rust
- Driver: Required and sold separately
- Compatible Drivers: C TR060.24V IP68 or C TR200.24V IP68
- Approval: RCM
- Dimensions (H x L x W): 110mm x 30mm x 110mm
- Weight: 0.26 kg
Key Features
- Square exterior wall light for facades, garden walls and outdoor architectural features
- Integrated 3W LED light source included
- Warm 3000K colour temperature with 120 lm output
- IP65 protection for exposed outdoor installations
- Low-voltage 24V DC operation
- Compact 110 mm square profile with 30 mm projection
- Corten rust finish with sand-textured surface
- Class III low-voltage construction
- Driver required and not included
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000. A compatible 24V DC driver is required and must be selected and installed for the total connected load. Do not connect the fitting directly to mains voltage.
Applications
- Exterior facades and architectural walls
- Garden walls, paths, steps and outdoor landscaping
- Fences, piers and gate surrounds
- Low-voltage outdoor lighting schemes
- Residential and commercial exterior feature lighting
Standards & Compliance
- AS/NZS 3000:2018 - electrical installation and wiring requirements
- AS/NZS 60598.2.1:2014 - applicable requirements for fixed general-purpose luminaires
- RCM marking stated by the manufacturer
Environmental Benefits
- Integrated LED technology provides efficient illumination using 3W of power
- Low-voltage 24V operation can support efficient multi-fitting outdoor lighting systems
- Aluminium components are recyclable at end of service life
- Long-life LED construction can reduce lamp replacement and associated waste
Warranty Information
3-year replacement warranty. Telbix warranty coverage applies to manufacturing defects and defects in materials or workmanship; installation must be completed by a licensed electrician.
Available Now
Available through Telbix and authorised Australian lighting distributors, subject to distributor stock and ordering lead times.
