Outdoor Wall Light Square LED 3W 24V 3000K Verde Green Terin Telbix

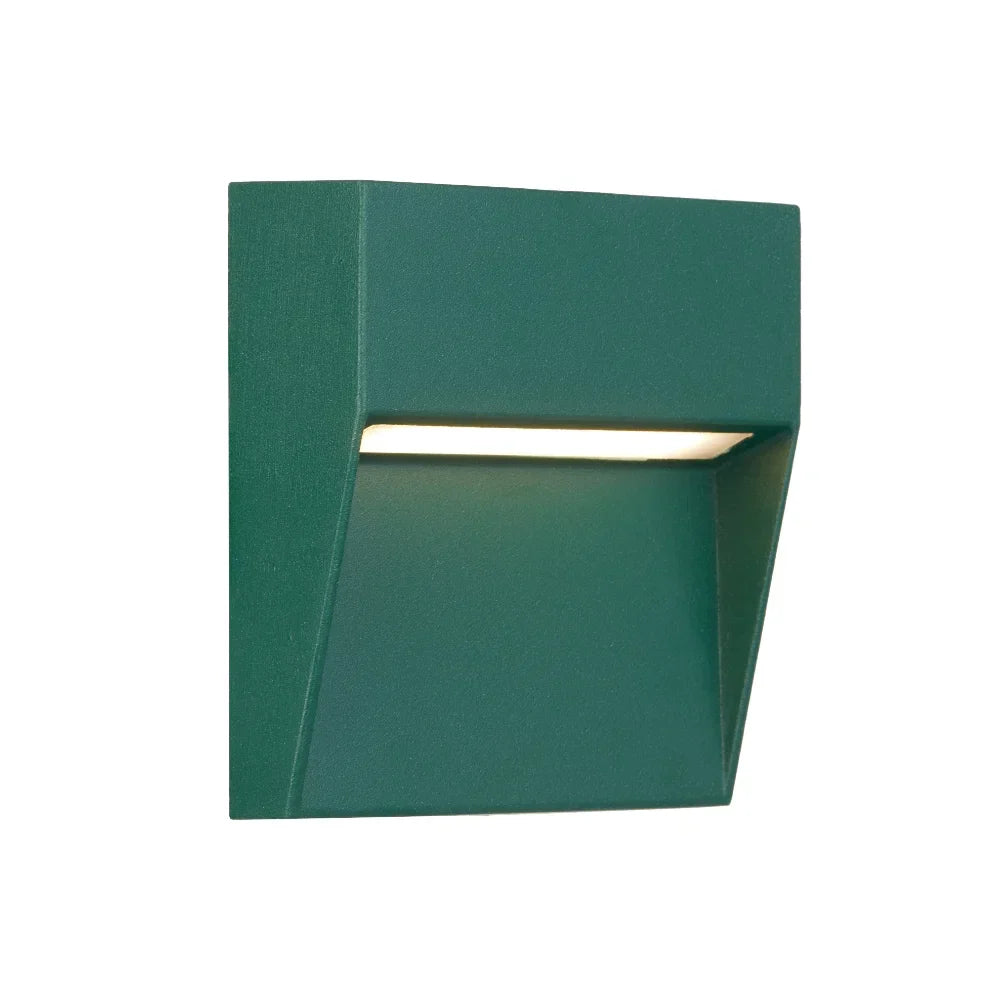

Telbix Terin square exterior wall lamp features 3W LED 24V 3000K 120lm, IP65 rating and 300mm cable, 110mm x 110mm in verde green. Ideal for facades.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Terin Square Wall Light, Terin Exterior Wall Light, 24V LED Facade Light, Outdoor LED Step Light
Technical Specifications
- Voltage: 24V DC
- Power: 3W maximum
- Light Source: Integrated SMD LED
- Colour Temperature: 3000K warm white
- Light Output: 120 lm
- Dimming: Non-dimmable
- Ingress Protection: IP65
- Electrical Protection: Class III low voltage, below 54V
- Materials: Aluminium and polycarbonate
- Finish: Verde Green textured sand finish
- Cable: 300mm supplied cable
- Driver: Required; compatible with Telbix C TR060.24V IP68 or C TR200.24V IP68
- Mounting: Surface-mounted
- Approvals: RCM
- Dimensions (H x L x W): 110mm x 30mm x 110mm
- Weight: 0.3 kg
Key Features
- Square exterior wall light for facades, garden walls and outdoor architectural features
- Integrated warm white LED with 3000K colour temperature
- Low-voltage 24V DC operation
- IP65-rated construction for outdoor use
- Compact 110mm square profile with 30mm projection
- Aluminium and polycarbonate construction
- Available in Verde Green finish
- Driver required and sold separately
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000. A suitable 24V DC driver is required, and all outdoor cable and connections must maintain the product's IP65 protection.
Applications
- Exterior wall and facade lighting
- Garden walls and landscaped areas
- Pathways and outdoor architectural features
- Residential and commercial outdoor lighting installations
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations, including wiring and installation requirements
- AS/NZS 60598.1:2017 – Luminaires, general requirements and tests
Environmental Benefits
- LED light source provides efficient illumination with low power consumption
- Integrated LED design can reduce lamp replacement frequency and associated waste
- Aluminium and polycarbonate components may be recoverable through appropriate material recycling streams
- Low-voltage Class III operation supports safer extra-low-voltage outdoor lighting systems
Warranty Information
3-year replacement warranty. Telbix warranty coverage applies to manufacturing defects and defects in materials or workmanship; installation must be completed by a licensed electrician.
Available Now
Available through Telbix and authorised Australian lighting distributors, subject to distributor stock levels.
