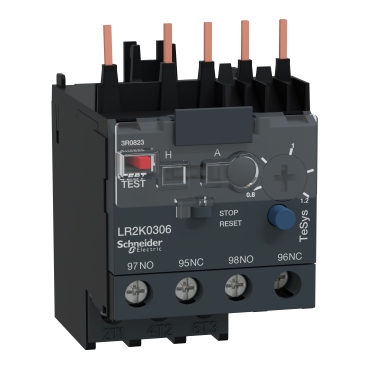

Overload Relay CL10 | 0.8-1.2A Current Range | Manual & Automatic Reset | Trip Class 10 | @Pack of 1 | by Clipsal
The Overload Relay CL10 with a 0.8-1.2A current range is designed for reliable motor protection in industrial automation. Featuring both manual and automatic reset options, this relay ensures fast response to overloads, making it ideal for control panels, HVAC systems, and conveyor systems. With phase failure sensitivity and compliance with IEC standards, it provides dependable performance for licensed electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Overload Relay CL10 | 0.8-1.2A Current Range | Manual & Automatic Reset | Trip Class 10 | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLR2K0306
Alternatively Known As: motor overload relay, thermal overload relay, SCHLR2K0306, Clipsal relay, CL10 relay, overload protection relay
Technical Specifications
- Current Range: 0.8-1.2A
- Trip Class: 10
- Reset: Manual and automatic
- Mounting: Direct to contactor
- Phase Failure Sensitivity: Yes
- Auxiliary Contacts: 1 NO + 1 NC
- Operating Temperature: -20°C to +60°C
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 70mm x 75mm x 45mm
- Weight: 0.15 kg
Key Features
- Adjustable current range: 0.8-1.2A
- Manual and automatic reset options
- Trip class 10 for fast motor protection
- Direct mounting to contactors
- Phase failure sensitivity
- Reliable protection against overloads
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct integration with motor starters and compliance with safety standards.
Applications
- Motor protection in industrial automation
- Control panels for machinery
- HVAC systems
- Pumps and compressors
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents unnecessary energy consumption by protecting motors from damage.
- Extends equipment lifespan, reducing waste and resource use.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Overload Relay CL10 0.8-1.2A (SCHLR2K0306) is available for immediate purchase. Ideal for industrial motor protection and automation panels.
