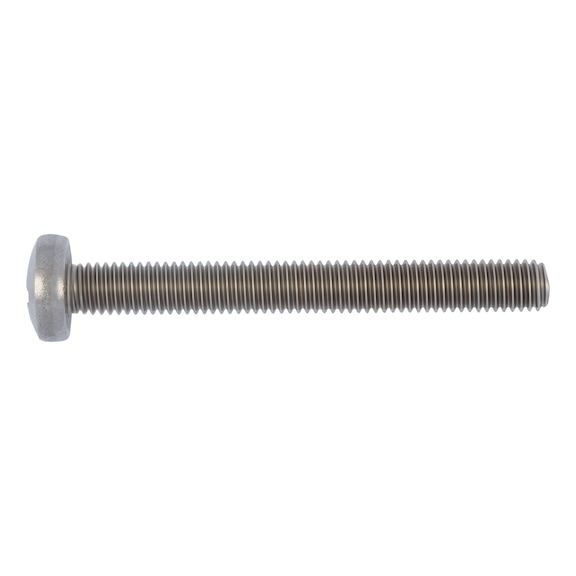

Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess Drive | UNC Thread | @Pack of 50 | by Wurth
Pan Head Screw Imperial ASME B1863 is crafted from 18-8 stainless steel, ensuring excellent corrosion resistance. Featuring an H cross recess drive for secure installation, this screw is perfect for mechanical assemblies and general-purpose fastening in metal and wood. Ideal for industrial and automotive applications, it meets ASME B18.6.3 standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Screw Imperial ASME B1863 | 18-8 Stainless Steel | H Cross Recess Drive | UNC Thread | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 7101310100
Alternatively Known As: Imperial Pan Head Screw, Stainless Steel Pan Head Bolt, UNC Thread Pan Head Screw, ASME B18.6.3 Pan Head Screw
Technical Specifications
- Nominal diameter: 3/16 inch (4.76 mm)
- Length: 1 inch (25.4 mm)
- Head diameter: 0.3620 inch (9.2 mm)
- Head height: 0.1280 inch (3.25 mm)
- Internal drive: H cross recess
- Material: Stainless steel AISI 304 (18-8)
- Surface finish: Plain
- Thread type: UNC
- Standards: ASME B18.6.3
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: H
- Dimensions (H x L x W): 3.25mm x 25.4mm x 9.2mm
- Weight: 0.01 kg
Key Features
- Pan head design for a smooth, rounded finish
- H cross recess drive for secure and easy installation
- Made from stainless steel AISI 304 (18-8) for corrosion resistance
- Plain surface finish
- Complies with ASME B18.6.3 standard
- UNC thread type for compatibility with imperial threaded components
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring corrosion-resistant fasteners
- Industrial equipment and machinery
- Automotive and aerospace components
- General purpose fastening in metal and wood
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Stainless steel material is recyclable and durable, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Pan Head Screw Imperial ASME B1863 Stainless Steel 18-8 H Cross Recess UNC is available for immediate purchase, ideal for industrial and mechanical fastening applications.
