Pan Head Tapping Screw DIN 7981 | Zinc-Plated Black | C Shape with H Recessed Head | @Pack of 50 | by Wurth
The Pan Head Tapping Screw DIN 7981 is designed for versatile fastening applications, featuring a durable zinc-plated black finish and a C shape with an H recessed head. Ideal for metal and plastic assembly, this self-tapping screw creates its own counter-thread for secure fastening, making it perfect for construction and manufacturing projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pan Head Tapping Screw DIN 7981 | Zinc-Plated Black | C Shape with H Recessed Head | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 1343925
Alternatively Known As: Self-tapping screw, Thread-moulding screw, Pan head screw, DIN 7981 screw, Zinc plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated black
- Form: C (thread with tip)

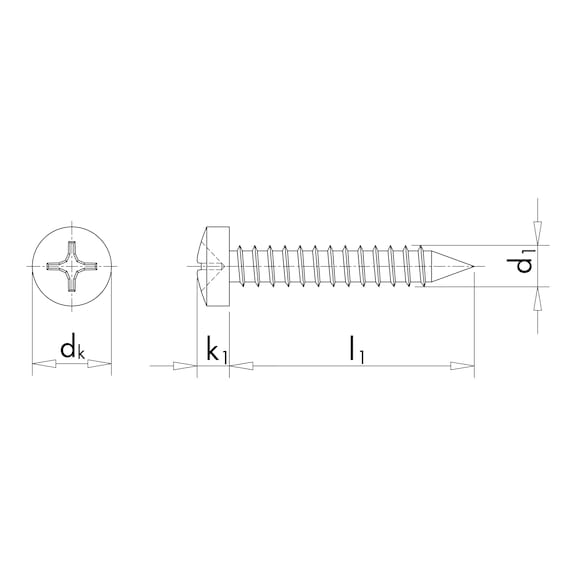

- Nominal diameter: 3.9 mm
- Length: 25 mm
- Head diameter: 7.5 mm
- Head height: 2.8 mm
- Internal drive: H2 (hex recess)
- DIN standard: 7981
- Head type: Pan head
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: C
- Dimensions (H x L x W): 2.8mm x 25mm x 7.5mm
- Weight: 0.02 kg
Key Features
- Belongs to the thread-moulding screw family
- Shapes its own counter-thread when screwed into a pre-prepared core hole
- Full thread design for secure fastening
- Pan head with H recessed internal drive (H2)
- Zinc plated black surface for corrosion resistance
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure correct core hole preparation and secure fastening.
Applications
- General fastening applications requiring self-tapping screws
- Metal and plastic assembly
- Construction and manufacturing requiring thread-moulding screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Steel material is recyclable
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Pan Head Tapping Screw DIN 7981 Zinc-Plated Black Shape C is available now for immediate purchase. Ideal for construction, manufacturing, and general fastening applications.
