Panel Flexible Wire 1.5mm LSZH 0.6/1kV Green/Yellow Per Metre Eltech

BRAND: Eltech
SKU: PW0015
$400.50 List price: $534.00
+ −
30 Days Return Electricians Unlock Trade Access
Eltech panel flexible wire features 1.5mm conductor, LSZH insulation, 0.6/1kV rating and green/yellow earth colours. Ideal for switchboard earth wiring.

Alternatively Known As: Panel Flex LSZH Earth Wire, Switchboard Earth Wire

Technical Specifications
  • Conductor: Flexible annealed copper, 1.5 mm²
  • Insulation: X‑HF‑110 cross‑linked polyolefin, LSZH, rated up to 125 °C
  • Voltage Rating: 0.6/1 kV
  • Operating Temperature: –40 °C to 125 °C

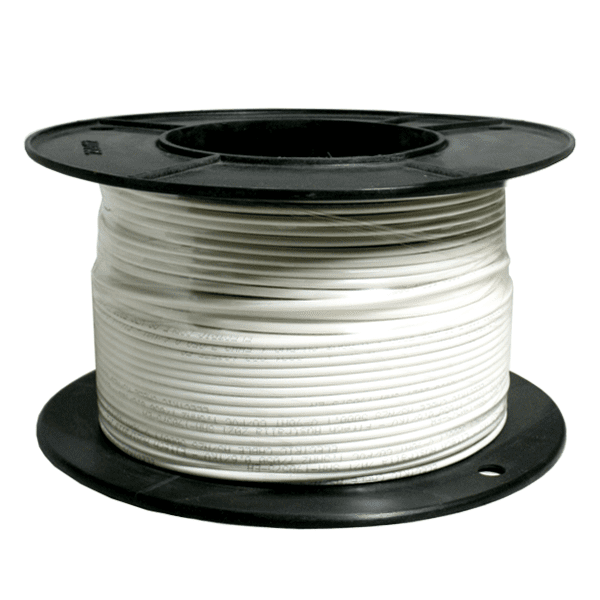

  • Drum Length: 100 m increments
  • Minimum Order Quantity: 100 m increments
  • Dimensions (H x L x W): 1.5mm x 100000mm x 1.5mm
  • Weight: 0.1 kg
Key Features
  • Low Smoke Zero Halogen (LSZH) insulation improves fire safety
  • Flexible single‑core wire for easy routing in switchboards and panels
  • Green/yellow earth colour coding for clear identification
  • High temperature rating (125 °C) suits demanding environments
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
  • Earth wiring in switchboards and control panels
  • Mains and sub‑mains earth conductors in residential, commercial and industrial installations
Standards & Compliance
  • AS/NZS 5000.1
  • AS/NZS 3808
  • AS/NZS 1125
  • AS/NZS 3008.1
Environmental Benefits
  • LSZH insulation reduces toxic and corrosive emissions during fire, enhancing safety and environmental performance
Warranty Information

Warranty as per Eltech standard terms and conditions.

Available Now

Available in 100 m increments through authorised Australian distributors.
