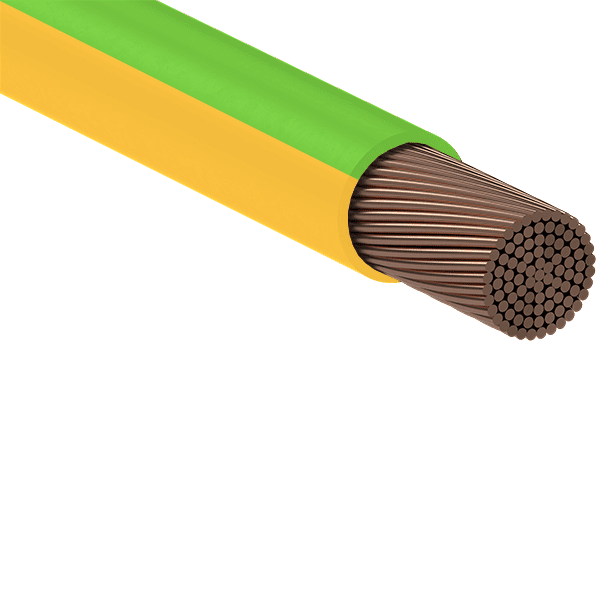

Panel Flexible Wire 16mm LSZH 0.6/1kV Green/Yellow 100m Eltech

BRAND: Eltech
SKU: PW0160.0-100
$12.00 List price: $16.00
+ −
30 Days Return Electricians Unlock Trade Access
Eltech panel flexible wire features 16mm conductor, LSZH insulation and 0.6/1kV rating, supplied as 100m length. Ideal for switchboard earth wiring.

Alternatively Known As: Panel Flex 16 mm² LSZH Earth Cable

Technical Specifications
  • Conductor Cross‑Section: 16 mm²
  • Conductor Material: Class 6 plain annealed copper
  • Insulation Material: X‑HF‑110 cross‑linked polyolefin LSZH (Low Smoke Zero Halogen)
  • Voltage Rating: 0.6/1 kV
  • Temperature Rating: –40 °C to 125 °C
  • Resistance Properties: Splash‑resistant to sea water, oil, petrol, Skydrol and acid; UV and ozone resistant
  • Standards: AS/NZS 5000.1 (plus AS/NZS 3808, 1125, 1660 series, 3008.1)
  • Packaging: Plastic reel, 100 m
  • Conductor Colour: Green/Yellow (earth)
  • Dimensions (H x L x W): 15mm x 100000mm x 15mm
  • Weight: 12 kg
Key Features
  • Low Smoke Zero Halogen insulation for enhanced fire safety
  • Splash‑resistant and UV/ozone‑resistant construction
  • High temperature rating up to 125 °C
  • Comprehensively compliant with Australian wiring standards
  • Supplied in convenient 100 m lengths on plastic reels
Professional Installation Requirements
  • Suitable for licensed electrician or qualified installer to terminate within switchboards and control panels in accordance with AS/NZS 3000.
Applications
  • Switchboard and panel earth wiring
  • Instrumentation and control systems earthing
  • Mains and sub‑mains earth conductor installations
Standards & Compliance
  • AS/NZS 5000.1
  • AS/NZS 3808
  • AS/NZS 1125
  • AS/NZS 1660 series
  • AS/NZS 3008.1
Environmental Benefits
  • LSZH insulation reduces toxic and corrosive fume emissions in fire
  • Extended lifespan in harsh environments reduces replacement waste
  • Copper conductor is highly recyclable
Warranty Information

Eltech provides a 7‑year warranty on applicable products when purchased and installed by a licensed electrician according to manufacturer’s instructions. Proof of purchase required. Warranty void if modified. See Eltech Terms & Conditions for details.

Available Now

Available through authorised Australian distributors and via Eltech stock in Sydney, Melbourne and Brisbane warehouses.
