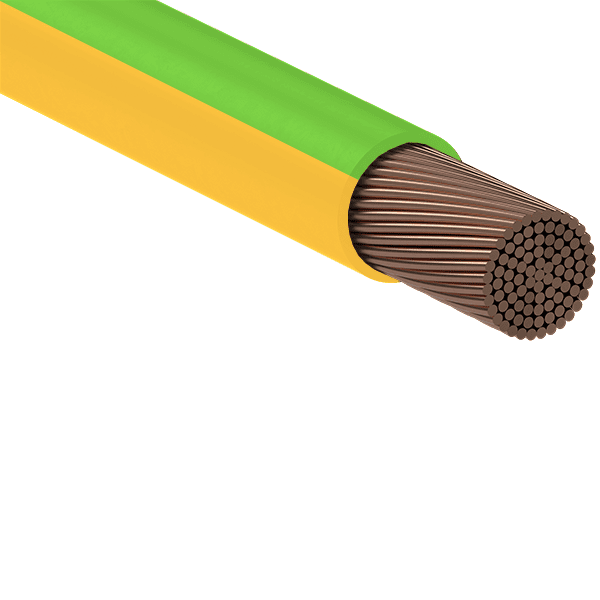

Panel Flexible Wire 16mm LSZH 0.6/1kV Green/Yellow Per Metre Eltech
Eltech panel flexible wire features 16mm conductor, LSZH insulation, 0.6/1kV rating and green/yellow earth colours. Ideal for switchboard earth wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Panel Flex LSZH Earth Cable, Flexible Earth Wire 16 mm²
Technical Specifications
- Conductor Size: 16 mm²
- Insulation Type: X‑HF‑110 Low Smoke Zero Halogen (LSZH)
- Voltage Rating: 0.6/1 kV
- Conductor Material: Plain annealed copper (Class 6)
- Operating Temperature: -40 °C to 125 °C
- Standards: AS/NZS 5000.1, 3808, 1125, 1660 series, 3008.1
- SAA Certificates: SAA241737, SAA241738
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 1.5 kg
Key Features
- Flexible single‑core design for easy panel wiring
- LSZH insulation minimises smoke and toxic emissions in fire
- Earth‑identification green/yellow colouring
- High voltage rating suitable for switchboard/applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Earth conductor wiring in switchboards and panels
- Power distribution systems requiring earth connection
- Residential, commercial and industrial electrical installations
Standards & Compliance
- AS/NZS 5000.1
- AS/NZS 3808
- AS/NZS 1125
- AS/NZS 1660 series
- AS/NZS 3008.1
- AS/NZS 3000
Environmental Benefits
- LSZH insulation reduces halogen and smoke emissions in fires, improving safety and environmental outcomes
Warranty Information
7‑year warranty valid when installed by a licensed electrician according to manufacturer’s instructions, subject to proof of purchase and Eltech’s T&Cs.
Available Now
Available from authorised Australian distributors; supplied from Eltech warehouses in Melbourne, Sydney, Brisbane.
