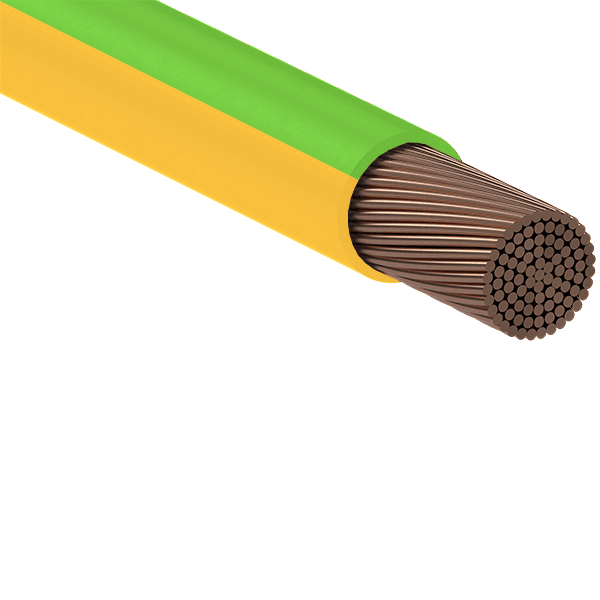

Panel Flexible Wire 35mm LSZH 0.6/1kV Green/Yellow 100m Eltech
Eltech panel flexible wire features 35mm conductor, LSZH insulation and 0.6/1kV rating, supplied as 100m length. Ideal for switchboard earth wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Panel Flexible Wire 35 mm LSZH Earth Cable
Technical Specifications
- Conductor Size: 35 mm²
- Conductor Material: Flexible plain or tinned annealed copper
- Insulation: X‑HF‑110 cross‑linked polyolefin LSZH, 125 °C rated
- Voltage Rating: 0.6/1 kV
- Operating Temperature Range: −40 °C to +125 °C
- Current Rating: 172 A (at 40 °C ambient, free air)
- Approx Mass: 342 kg/km
- Minimum Bending Radius: 40 mm
- Dimensions (H x L x W): 100000mm x 35mm x 35mm
- Weight: 34.2 kg
Key Features
- Low Smoke Zero Halogen insulation improves safety in fire conditions
- X‑HF‑110 insulation is resistant to seawater, oil, petrol, skydrol, acid, UV and ozone
- Wide operating temperature range from −40 °C to +125 °C
- Colour‑coded green/yellow for earth identification
- Comprehensive AS/NZS standards compliance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Earth wiring in switchboards and sub‑mains
- Instrumentation and control systems wiring
- General panel flexible earth cable applications
Standards & Compliance
- AS/NZS 5000.1
- AS/NZS 3808
- AS/NZS 1125
- AS/NZS 1660.1
- AS/NZS 1660.2.1
- AS/NZS 1660.2.2
- AS/NZS 1660.2.3
- AS/NZS 1660.3
- AS/NZS 1660.5.4
- AS/NZS 1660.5.6
- AS/NZS 3008.1
Environmental Benefits
- LSZH insulation reduces toxic and corrosive emissions in fire
- Durable materials resist degradation, reducing replacement frequency
Warranty Information
Warranty per Eltech standard terms and conditions.
Available Now
Available in 100 m drum lengths through authorised Australian distributors; held in stock in Melbourne and Sydney.
