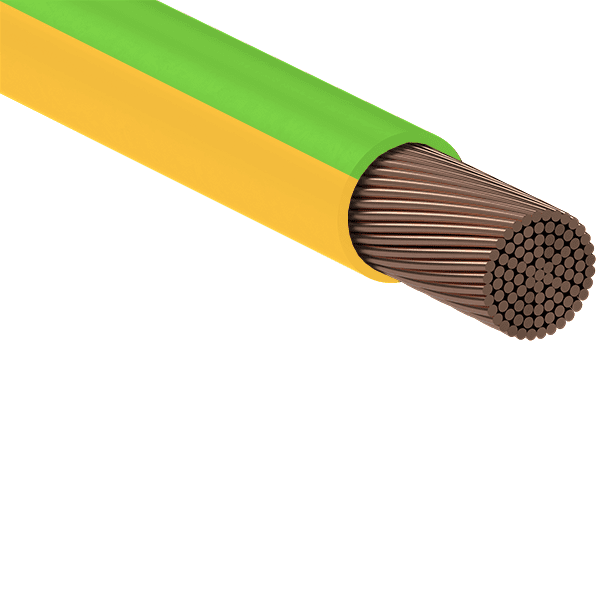

Panel Flexible Wire 70mm LSZH 0.6/1kV Green/Yellow Per Metre Eltech

BRAND: Eltech
SKU: PW0700
$41.80 List price: $55.80
+ −
30 Days Return Electricians Unlock Trade Access
Eltech panel flexible wire features 70mm conductor, LSZH insulation, 0.6/1kV rating and green/yellow earth colours. Ideal for switchboard earth wiring.

Alternatively Known As: Panel Flex LSZH Earth Wire 70 mm²

Technical Specifications
  • Conductor Size: 70 mm²
  • Conductor Material: Flexible plain or tinned annealed copper
  • Insulation Material: X‑HF‑110 cross‑linked polyolefin (Low Smoke Zero Halogen)
  • Voltage Rating: 0.6/1 kV
  • Operating Temperature Range: –40 °C to +125 °C
  • Current Rating: 273 A (in free air at 40 °C)
  • Approximate Mass: 675 kg/km
  • Minimum Bending Radius: 57.6 mm
  • Standards: AS/NZS 5000.1; AS/NZS 3808; AS/NZS 1125; AS/NZS 1660 series; AS/NZS 3008.1
  • Dimensions (H x L x W): 57.6mm x 14400mm x 57.6mm
  • Weight: 0.675 kg
Key Features
  • Low Smoke Zero Halogen insulation for fire-safe environments
  • High temperature rated (up to 125 °C)
  • Flexible annealed copper conductor for ease of installation
  • Earth‑coloured green/yellow insulation as standard
  • Certified to multiple Australian standards for safety and performance
Applications
  • Earth conductors in switchboards
  • Panel wiring in switchgear and control systems
  • Instrumentation and control earth connections
  • Mains and sub‑mains earth wiring
Standards & Compliance
  • AS/NZS 5000.1
  • AS/NZS 3808
  • AS/NZS 1125
  • AS/NZS 1660.1–1660.5.6
  • AS/NZS 3008.1
Environmental Benefits
  • Low Smoke Zero Halogen insulation reduces toxic emissions in fire
  • Long service life reduces replacement waste
Warranty Information

Refer to Eltech Australia’s standard product warranty terms.

Available Now

Available for cut‑to‑length supply from Eltech warehouses in Melbourne and Sydney.
