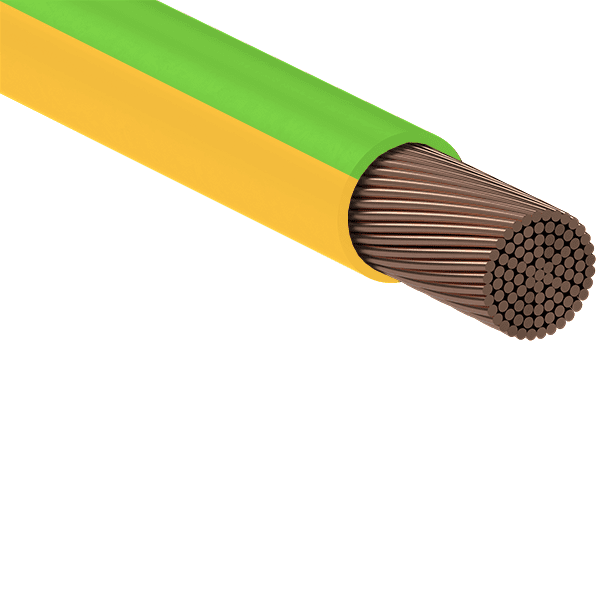

Panel Flexible Wire 95mm LSZH 0.6/1kV Green/Yellow Per Metre Eltech

BRAND: Eltech
SKU: PW0950
$52.80 List price: $70.40
+ −
30 Days Return Electricians Unlock Trade Access
Eltech panel flexible wire features 95mm conductor, LSZH insulation, 0.6/1kV rating and green/yellow earth colours. Ideal for switchboard earth wiring.

Alternatively Known As: Panel Flexible Wire 95 mm² LSZH Earth

Technical Specifications
  • Conductor Size: 95 mm²
  • Conductor Material: Class 6 plain annealed copper (10 mm² & above)
  • Insulation: X‑HF‑110 cross‑linked polyolefin LSZH, flame‑retardant, UV/oil/acid/sea‑water splash resistant
  • Operating Temperature: −40 °C to +125 °C
  • Voltage Rating: 0.6/1 kV
  • Standards: AS/NZS 5000.1, AS/NZS 3808, AS/NZS 1125, AS/NZS 1660 series, AS/NZS 3008.1
  • Current Rating (free air, 40 °C): 329 A
  • Approx mass: 900 kg/km
  • Minimum Bending Radius: 65.6 mm
  • Dimensions (H x L x W): 18.0mm x 500000.0mm x 16.4mm
  • Weight: 0.9 kg
Key Features
  • Low Smoke Zero Halogen insulation for improved safety in fire conditions
  • High temperature‑rated to 125 °C allowing for demanding environments
  • Splash‑resistant and UV/ozone/oil/acid‑resistant insulation
  • Australian‑manufactured with SAA certification
  • Available in green/yellow for earth identification, cut‑to‑length from 500 m drums
Professional Installation Requirements
  • Installation should be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
  • Switchboard and control panel internal wiring
  • Earth/ground conductor in mains and sub‑main systems
  • Power distribution in commercial and industrial installations
Standards & Compliance
  • AS/NZS 5000.1
  • AS/NZS 3808
  • AS/NZS 1125
  • AS/NZS 1660.1
  • AS/NZS 1660.2.1
  • AS/NZS 1660.2.2
  • AS/NZS 1660.2.3
  • AS/NZS 1660.5.6
  • AS/NZS 1660.5.4
  • AS/NZS 3008.1
Environmental Benefits
  • Low Smoke Zero Halogen insulation reduces toxic and corrosive emissions in fire events
  • Durable construction with high temperature tolerance reduces replacement frequency
Warranty Information

Standard manufacturer warranty applies; refer to Eltech for full warranty terms.

Available Now

Available through authorised distributors; supplied on plastic reel (≤6 mm²) or timber drum (≥10 mm²) and cut‑to‑length per order.
