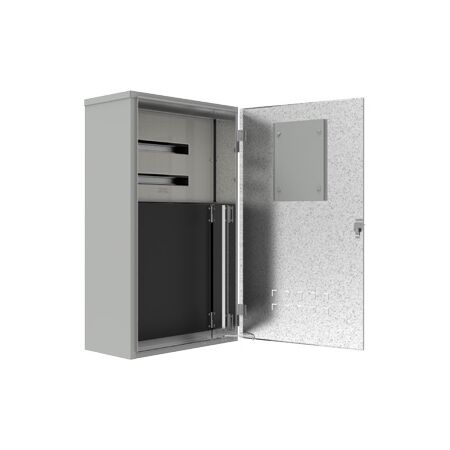

Panel Insulating Replacement 400x590 | IP23 Rated | Galvanised Steel | Light Grey by B&R Enclosures

SKU: MD0301P
$91.20 List price: $114.70
+
Panel insulating replacement with IP23 rating and galvanised steel construction—ideal for domestic and light commercial metering installations. Built for durability and safety, with powdercoated light grey finish and SIR approval.

Product Name/Title: Panel Insulating Replacement 400x590 Vic

Brand: B&R Enclosures

SKU: MD0301P

Alternatively Known As: Metering Installation Panel, MD Series Panel, Domestic Metering Panel

Technical Specifications
  • Material: 1.0mm galvanised steel to Z275
  • Finish: Powdercoated Light Grey RAL7035
  • IP Rating: IP23
  • Dimensions (H x L x W): 590mm x 100mm x 400mm
  • Weight: 2.5 kg
Key Features
  • SIR Approval #SIR9640597B
  • Designed for both single and multi-phase installations
  • Suits bottom connected meters
  • No sharp edges
  • Improved strength
  • Manufactured from 1.0mm galvanised steel to Z275
  • Powdercoated Light Grey RAL7035
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Domestic: Homes and residential buildings
  • Commercial: Light commercial metering installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Victoria MD Series Metering Installation Panel is available now for immediate purchase. Ideal for domestic and light commercial applications.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]
