Panelboard 60 Way 250A | IP42 | Surface Mounted | Orange by NHP
Panelboard with 60 outgoing ways and 250A rated current—ideal for commercial and industrial facilities. Built for extensive circuit management, with IP42 protection and durable surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

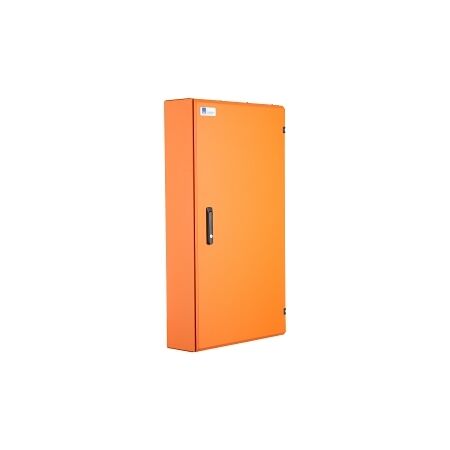

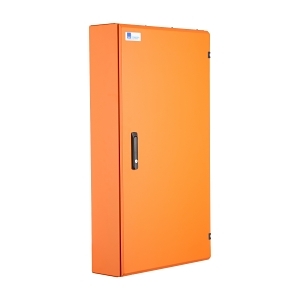

Product Name/Title: NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis 160A Main Switch Orange
Brand: NHP
SKU: CPL60M160O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Electrical Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 160 A
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 60 outgoing ways for extensive circuit management.
- IP42 rated for protection against solid objects and water.
- Surface mounted design for easy installation.
- Impact strength rated IK10 for durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis 160A Main Switch Orange is available now for immediate purchase. Ideal for commercial and industrial applications.
