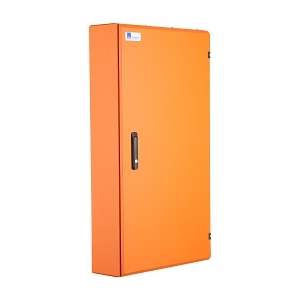

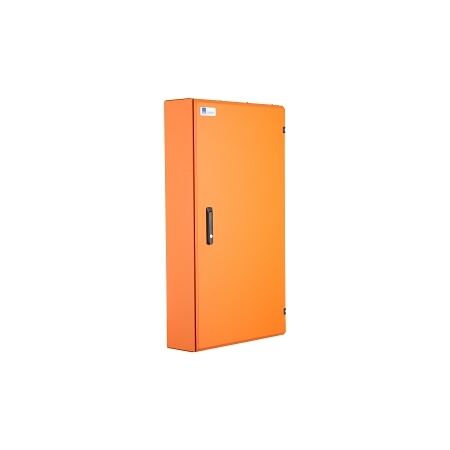

Panelboard 60 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 250A main switch and 60 outgoing ways—ideal for industrial and commercial facilities. Built for robust electrical distribution, with IP42 protection and durable steel housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis 250A Main Switch Orange
Brand: NHP
SKU: CPL60M250O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept Plus Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 60
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- 250A main switch with 60 outgoing ways.
- IP42 rated for protection against solid objects greater than 1mm and water spray.
- Surface mounted design with a durable steel housing.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1080mm IP42 DIN-T 60 Way 250A NC Chassis is available now for immediate purchase. Ideal for commercial and industrial applications.
Non-Returnable & Non-Cancellable
