Panelboard 84 Way 160A Main Switch | IP40 Rated | Light Grey by NHP
Panelboard with 84 outgoing ways and 160A main switch—ideal for industrial and commercial facilities. Built for extensive circuit management, with IP40 protection and surface-mounted design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

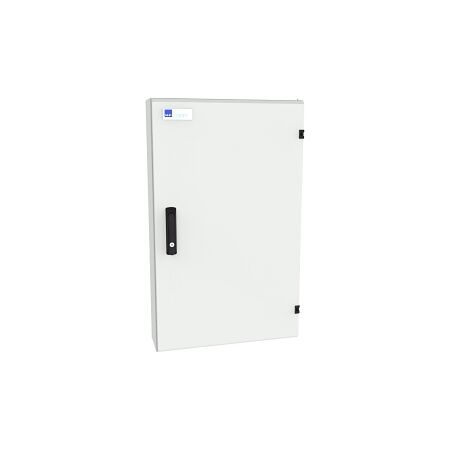

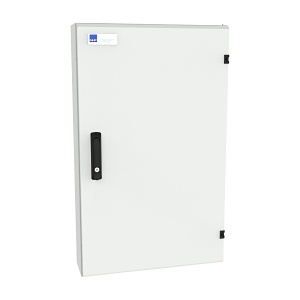

Product Name/Title: NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 160A Main Switch Light Grey
Brand: NHP
SKU: COE84M160LG
Alternatively Known As: NHP Distribution Board, NHP Electrical Panel, NHP Circuit Breaker Panel
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Main Switch Rated Current: 160 A
- Material Housing: Steel
- Degree of Protection: IP40
- Impact Strength: IK07
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1296mm x 153mm x 530mm
- Weight: 30 kg
Key Features
- 84 outgoing ways for extensive circuit management.
- IP40 rated for protection against solid objects larger than 1mm.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, office buildings, and large retail spaces
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 160A Main Switch Light Grey is available now for immediate purchase. Ideal for commercial and industrial applications.
