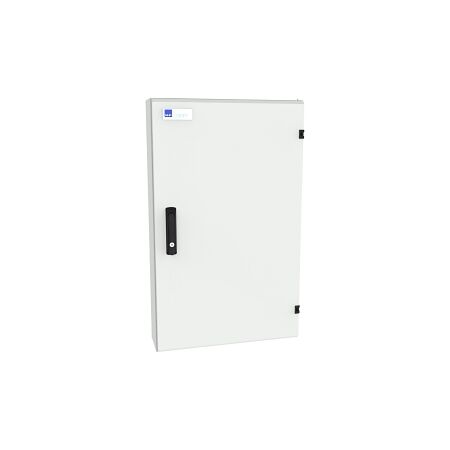

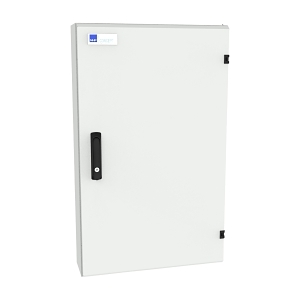

Panelboard 84 Way 160A MCCB | 1296mm IP40 | Light Grey by NHP
Panelboard with 84 outgoing ways and 160A MCCB—ideal for industrial and commercial applications. Built for extensive circuit management, with IP40 protection and surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 160A MCCB Break Main Switch Light Grey
Brand: NHP
SKU: COE84MCCB160LG
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Panelboard
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles: 84
- Main Switch Rated Current: 160 A
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Dimensions (H x L x W): 1296mm x 153mm x 530mm
- Weight: 50 kg
Key Features
- 84 outgoing ways for extensive circuit management.
- IP40 rated for protection against solid objects.
- Surface mounted design for easy installation.
- Includes a main switch rated at 160A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, commercial buildings
- General: Any location requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 1296mm IP40 DIN 84 Way 160A MCCB Break Main Switch Light Grey is available now for immediate purchase. Ideal for commercial and industrial applications.
