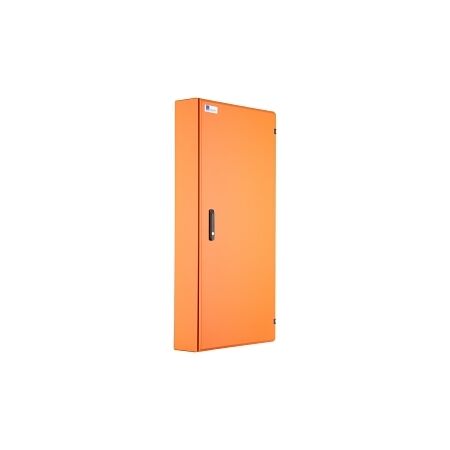

Panelboard 84 Way 250A | IP42 Rated | Surface Mounted | Orange by NHP
Panelboard with 84 outgoing ways and 250A rated current—ideal for commercial and residential electrical distribution. Built for durability with IP42 protection and surface-mounted design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP Concept Plus Panelboard 1296mm IP42 DIN-T 84 Way 250A NC Chassis No Main Switch Orange
Brand: NHP
SKU: CPL84O
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Electrical Panelboard
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 250 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1296mm x 200mm x 600mm
- Weight: 30 kg
Key Features
- 84 outgoing ways for extensive circuit management.
- 250A rated current for high capacity.
- IP42 rating for protection against solid objects and limited water ingress.
- Steel housing for durability and strength.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- Residential: Large homes requiring extensive electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard 1296mm IP42 DIN-T 84 Way 250A is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
