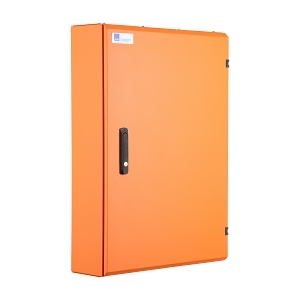

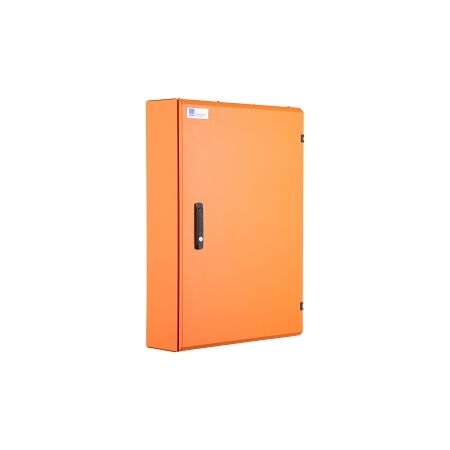

NHP Concept Plus Panelboard Metering 864mm IP42 Single Meter DIN-T 24 Way 250A Main Switch Orange

Panelboard Metering 24 Way | 250A Main Switch | IP42 Steel Housing | Orange by NHP

BRAND: NHP

SKU: CPLMS24M250O

$7,009.80 List price: $9,308.10

+ −

30 Days Return Delivery Options

Panelboard metering with 24 ways and 250A main switch—ideal for commercial and industrial applications. Built for reliable electrical distribution, with integrated energy metering and robust IP42 steel housing.

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard Metering 864mm IP42 Single Meter DIN-T 24 Way 250A Main Switch Orange

Brand: NHP

SKU: CPLMS24M250O

Alternatively Known As: NHP Panelboard, Concept Plus Distribution Board, Single Metering Panel

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 24
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 6 kV
Rated Insulation Voltage: 500 V
Number of Poles (Main Switch): 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Spare DIN Equipment Space Poles: 14
Material Housing: Steel
Material Thickness: 1.6 mm
Degree of Protection: IP42
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 864mm x 200mm x 600mm
Weight: 25 kg

Key Features

Integrated energy metering function for efficient monitoring.
Robust steel housing with IP42 protection for durability.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, office buildings, and retail spaces
General: Any location requiring reliable electrical distribution and metering

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Efficient energy metering helps in reducing energy waste and optimizing consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard Metering is available now for immediate purchase. Ideal for commercial and industrial applications, ensuring reliable electrical distribution.

CPLMS24M250O-AU-Concept-Plus-Panelboard-Single-Metering-Datasheet.pdf (CPLMS24M250O-AU-Concept-Plus-Panelboard-Single-Metering-Datasheet.pdf, 1,125 Kb) [Download]
