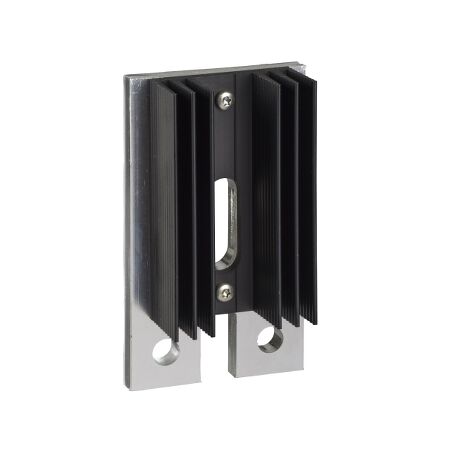

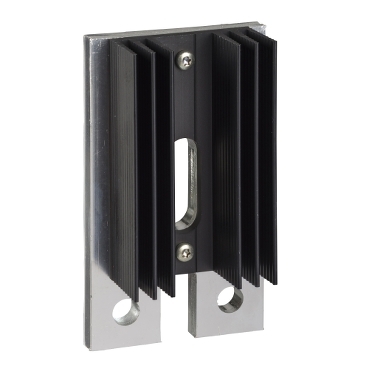

Parallel OR Series Connection Plate | Heatsink Integrated | Compatible with NSX400DC to NSX630DC | @Pack of 1 | by Clipsal
The Parallel OR Series Connection Plate is designed for seamless integration with ComPact NSX400DC to NSX630DC circuit breakers, enabling efficient parallel or series connections. Featuring a built-in heatsink for optimal heat dissipation, this connection plate is perfect for electrical distribution panels and industrial switchboards, ensuring reliable power management in commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Parallel OR Series Connection Plate | Heatsink Integrated | Compatible with NSX400DC to NSX630DC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV438338
Alternatively Known As: NSX400DC connection plate, NSX630DC series connector, circuit breaker parallel connector, SCHLV438338 heatsink plate
Technical Specifications
- Compatibility: ComPact NSX400DC to NSX630DC circuit breakers
- Connection Type: Parallel or series connection of 2 poles
- Component: Connection plate with integrated heatsink
- Material: High-conductivity metal with heat dissipation features
- Part Number: SCHLV438338
- Dimensions (H x L x W): 40mm x 200mm x 120mm
- Weight: 1.2 kg
Key Features
- Enables parallel or series connection of 2 poles
- Designed for ComPact NSX400DC to NSX630DC circuit breakers
- Includes connection plate with integrated heatsink
- Single part solution for efficient installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and manufacturer guidelines.
Applications
- Electrical distribution panels
- Industrial switchboards
- Commercial and industrial power management
- Parallel or series connection of circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Facilitates efficient electrical connections, reducing energy loss and improving system reliability.
- Durable construction minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHLV438338 Parallel or Series Connection Plate with Heatsink is available for immediate purchase. Ideal for industrial and commercial electrical distribution systems requiring reliable parallel or series connections.
