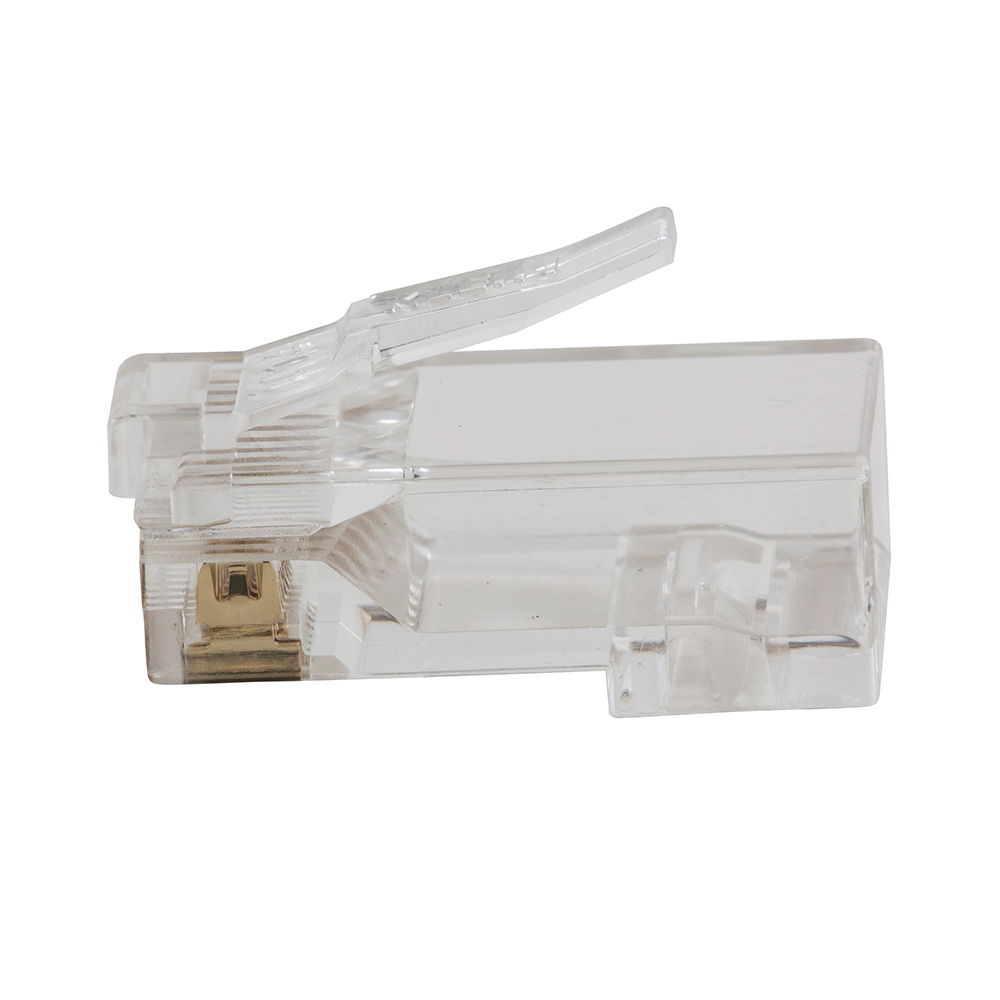

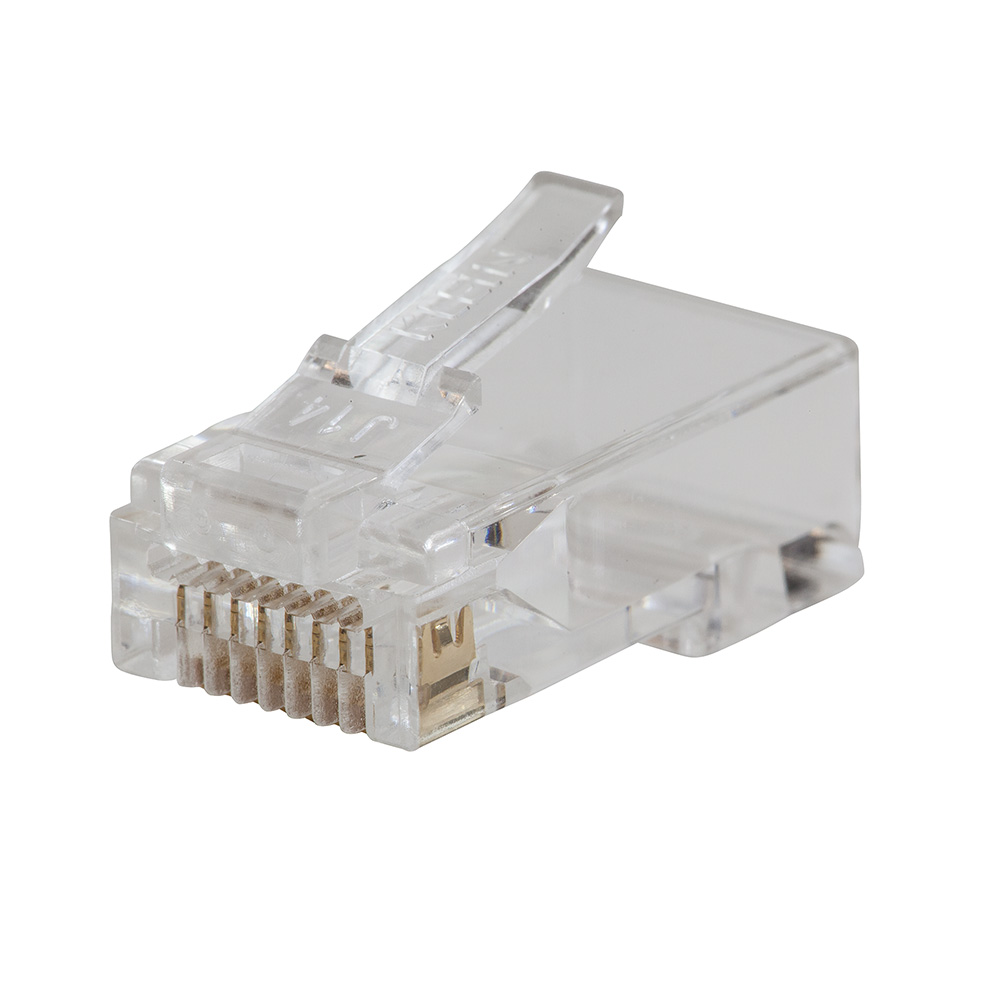

Pass-Thru™ Modular Data Plug RJ45 CAT5E | 50 µ-inch Gold Plating | Fast Installation | by Wattmaster
The Pass-Thru™ Modular Data Plug RJ45 CAT5E is designed for quick and reliable network installations, featuring exclusive pass-through technology for accurate wire order verification. With 50 µ-inch gold plating on all contact surfaces, it ensures enhanced conductivity and performance, making it ideal for voice and data cable terminations in professional settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Pass-Thru™ Modular Data Plug RJ45 CAT5E | 50 µ-inch Gold Plating | Fast Installation | by Wattmaster
Brand: Wattmaster
SKU: A-VDV826-702
Alternatively Known As: RJ45 CAT5e Pass-Thru Connector, Modular Data Plug CAT5e, Pass-Through RJ45 Plug, CAT5e Network Connector
Technical Specifications
- Connector Type: RJ45
- Cable Type: CAT5e
- Position & Contacts: 8P 8C
- Material: PVC plastic housing with gold-plated contacts
- Max Cable Diameter: 1.01 mm (0.04 inches)
- Overall Length: 22 mm (0.875 inches)
- Overall Height: 12 mm (0.453 inches)
- Overall Width: 2 mm (0.094 inches)

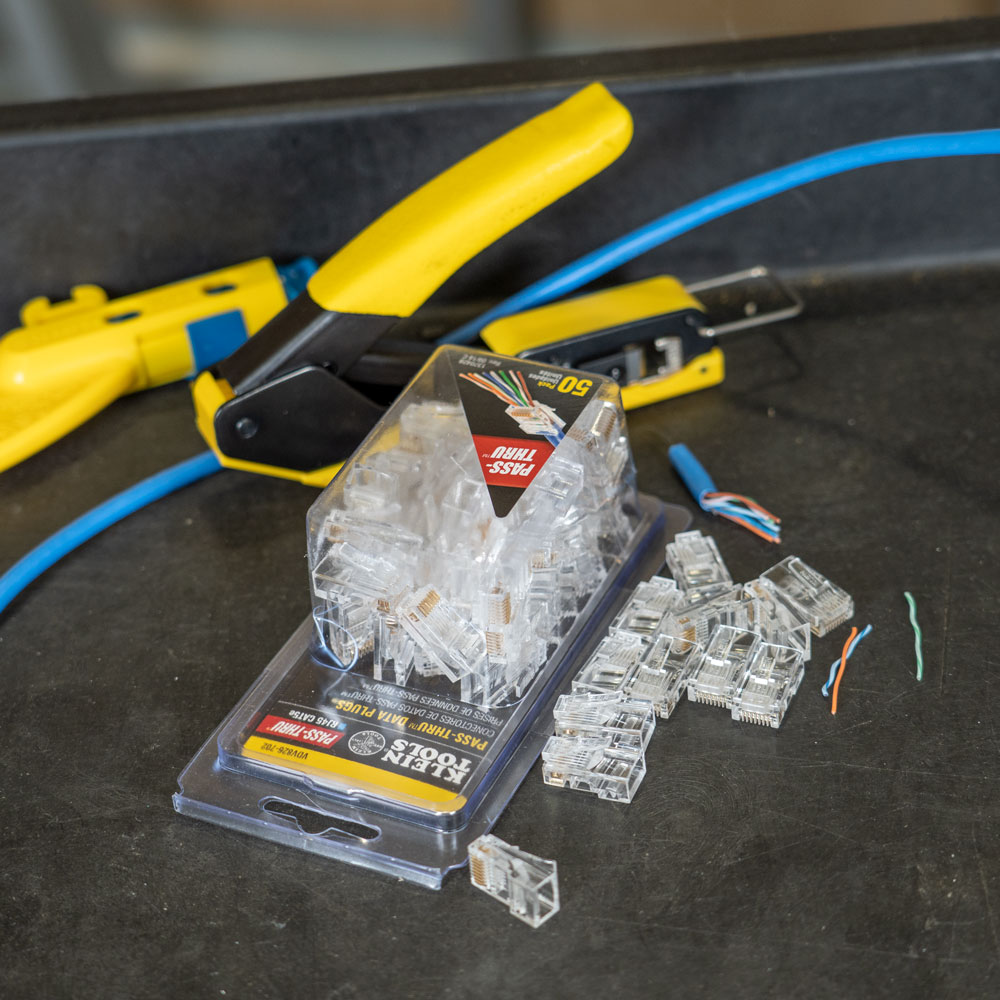

- Package Quantity: 50 plugs
- Compatible with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
- Not for use on live circuits or cabling systems
- Dimensions (H x L x W): 12mm x 22mm x 2mm
- Weight: 0.136 kg
Key Features
- Exclusive Klein-designed CAT5e Pass-Thru™ connectors for fast, reliable installations

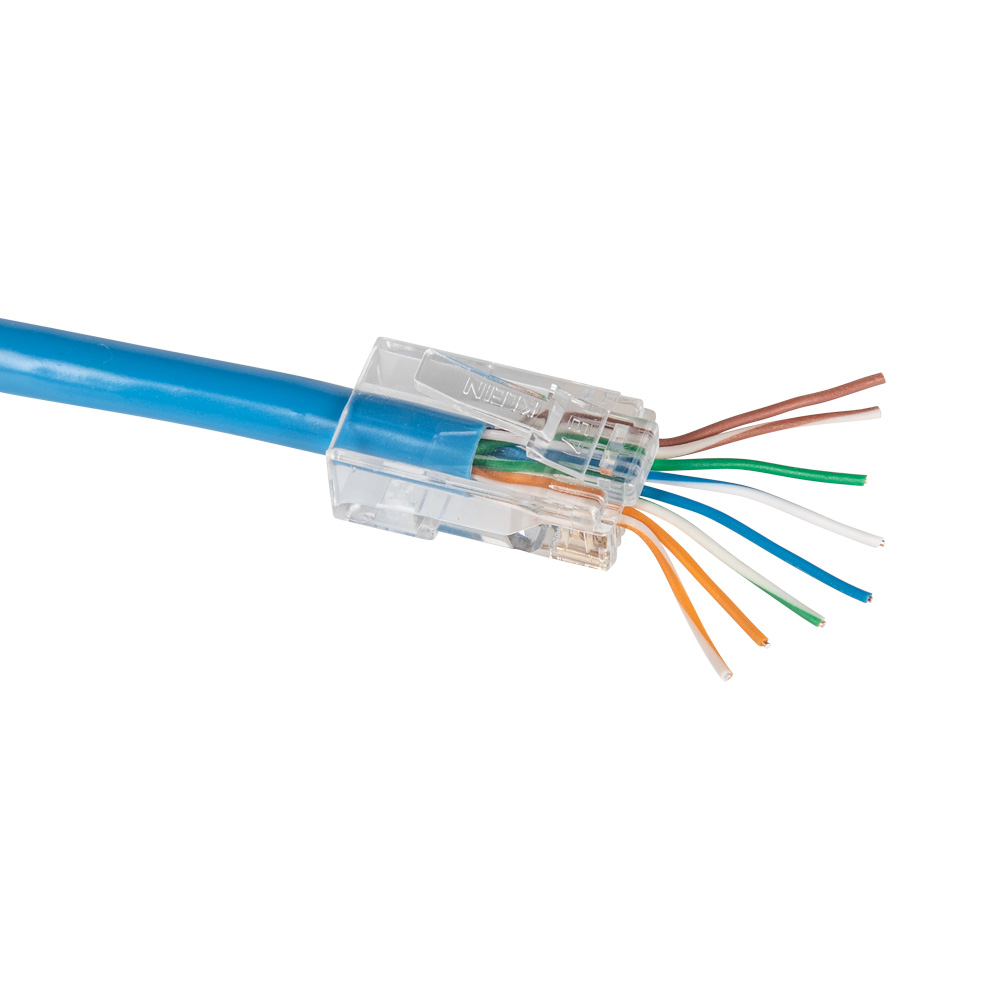

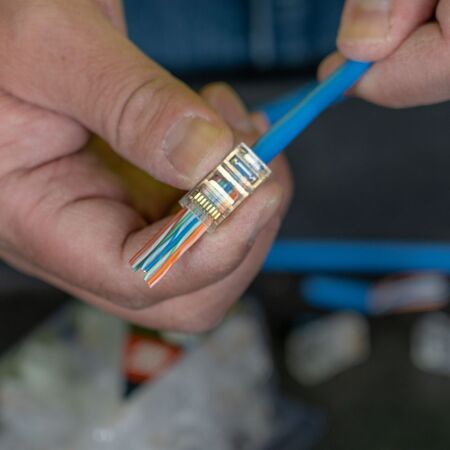

- Pass-through technology allows cable to pass through connector for accurate wire order verification

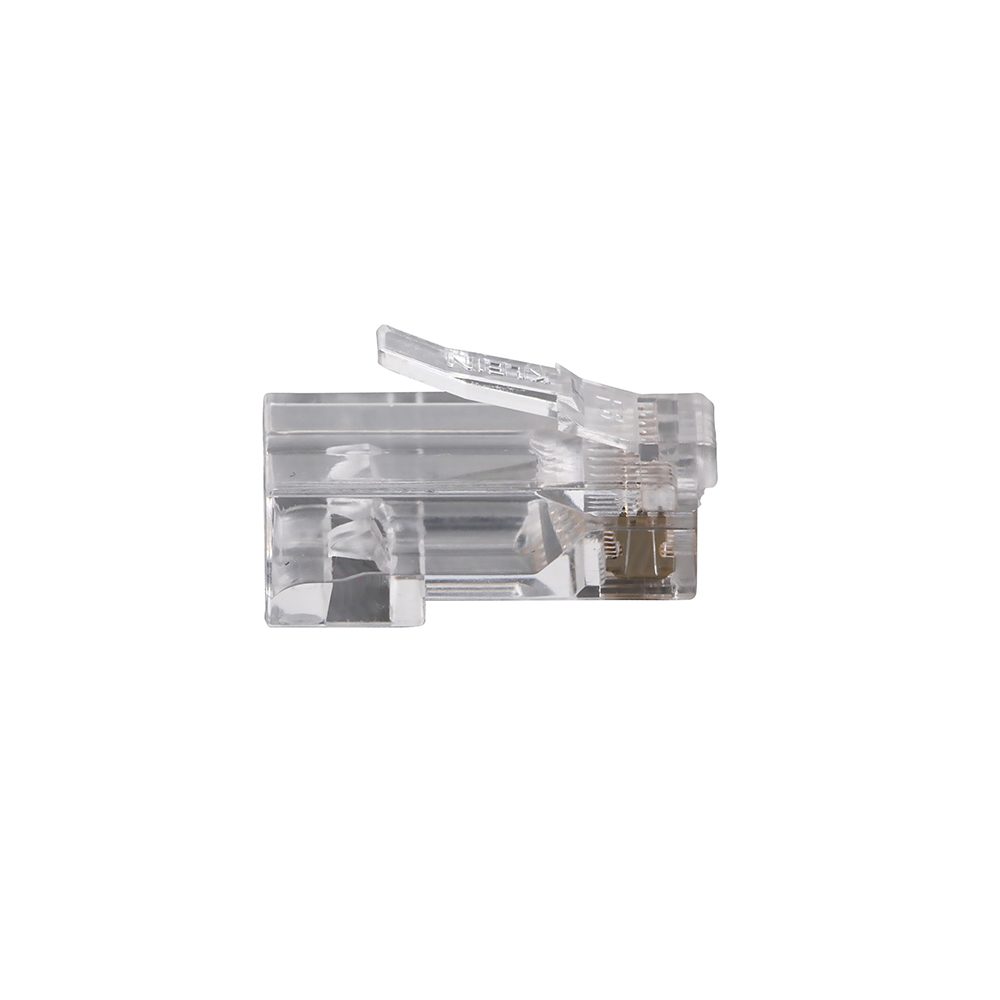

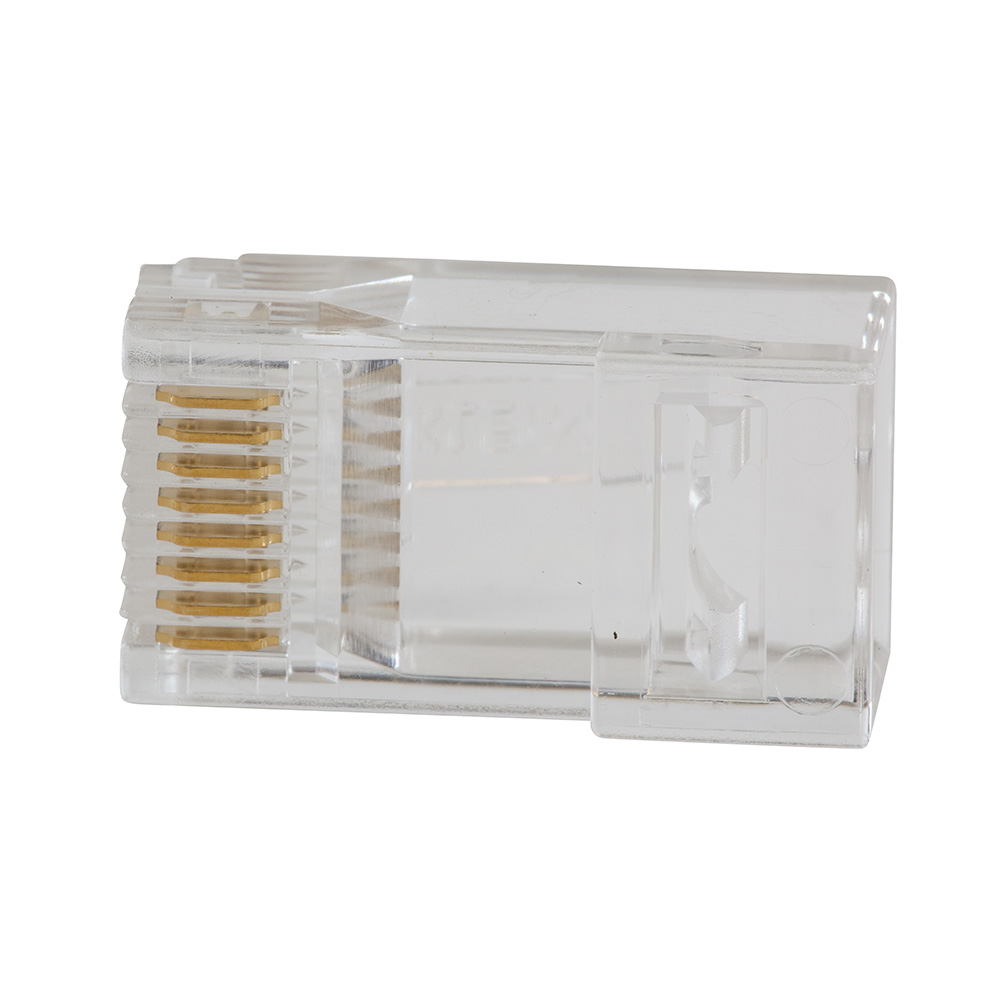

- 50 µ-inch minimum gold plating on all contact surfaces for enhanced conductivity
- Category 5e performance per EIA/TIA B.2 standards
- Compatible with solid or stranded cable
- 8 position, 8 contact pass-through style data plug
- RoHS compliant
Professional Installation Requirements
- Professional installation recommended using compatible crimping tools such as Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for secure and reliable terminations.
Applications
- Voice and data cable terminations
- Network installations requiring CAT5e connectivity
- Use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110 for efficient cable termination
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable gold-plated contacts extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for detailed warranty terms.
Available Now
The Wattmaster Pass-Thru™ Modular Data Plug RJ45 CAT5E 50-Pack is available for immediate purchase, ideal for professional network and data cable installations.
