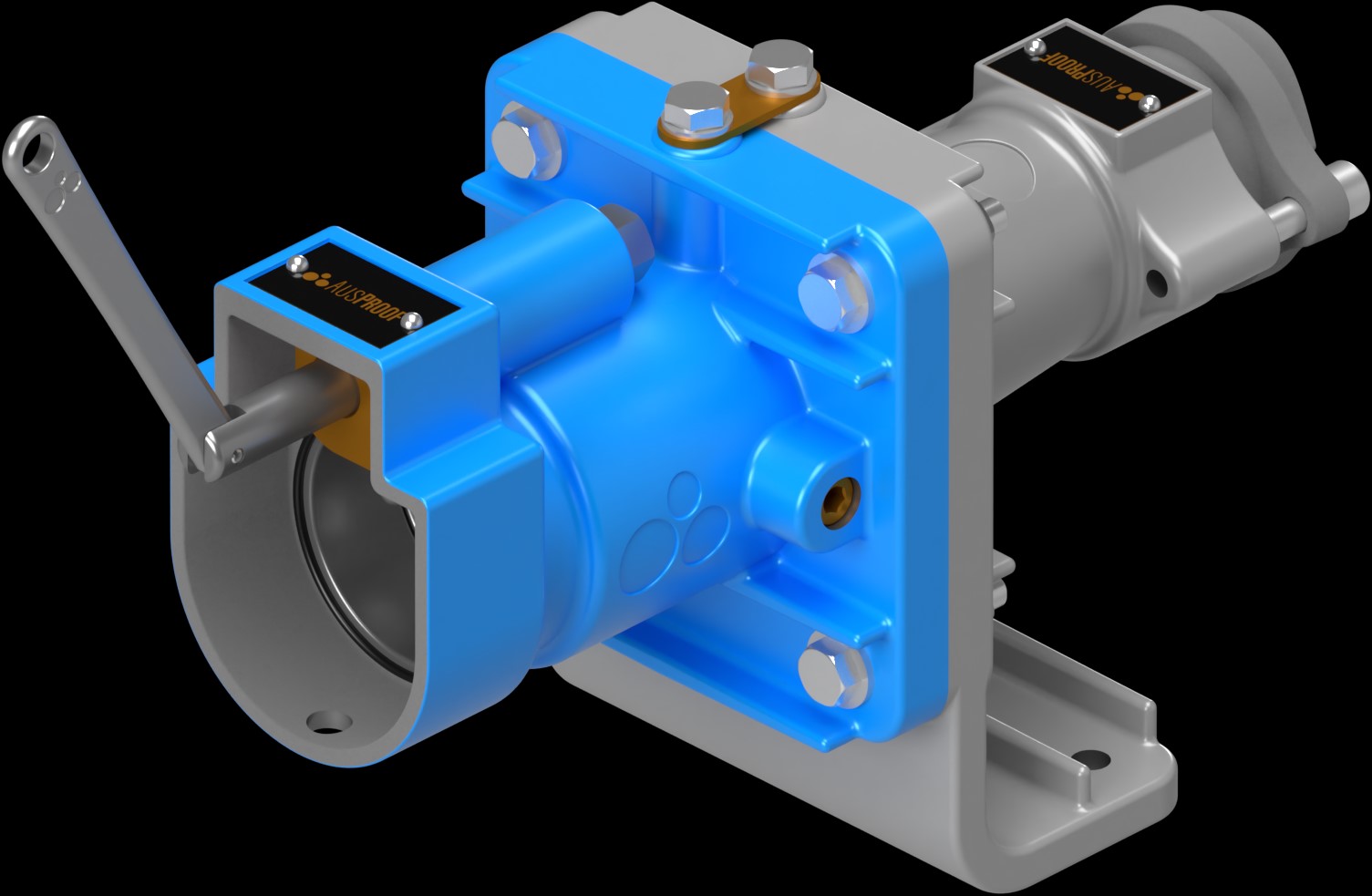

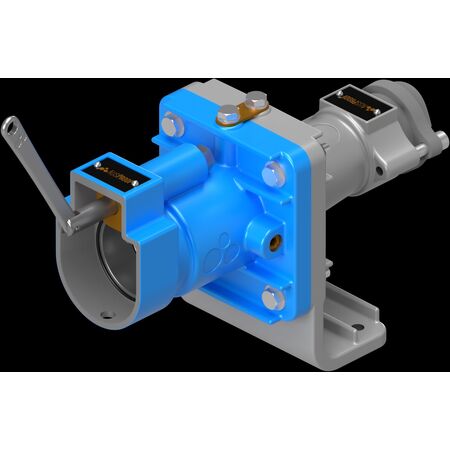

PES 1100V 60A Gland Bracket (90) 16-C 35-38-G (241.1)

PES Gland Bracket 1100V 60A | IP55 Rated | Stainless Steel | Ausproof

BRAND: Ausproof

SKU: RS2314

$2,190.40 List price: $2,720.40

+ −

30 Days Return Delivery Options

PES Gland Bracket with 1100V voltage rating and 60A current capacity—ideal for mining and hazardous environments. Built for durability with IP55 protection and stainless steel construction, ensuring reliable performance in tough conditions.

Description

Product Name/Title: PES 1100V 60A Gland Bracket (90) 16-C 35-38-G (241.1)

Brand: Ausproof

SKU: RS2314

Alternatively Known As: PES Gland Bracket, Ex-rated Gland Bracket, Flameproof Gland Bracket, Mining Gland Bracket

Technical Specifications

Voltage: 660-1,100V
Current Rating: 60A Ex, 90A Non Ex
Material: Grade 304 Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 3.2kA for 0.2 seconds (2 tests)
Through Fault Current (Earth): 1.0kA for 0.2 seconds (2 tests)
AC HV Withstand (Phase): 4.2kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 60A and 90A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 150mm x 150mm
Weight: 5 kg

Key Features

A single solid earth body
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified personnel trained in hazardous area electrical equipment installation to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof repairability reduces waste by allowing on-site barrel replacement.

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PES 1100V 60A Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
