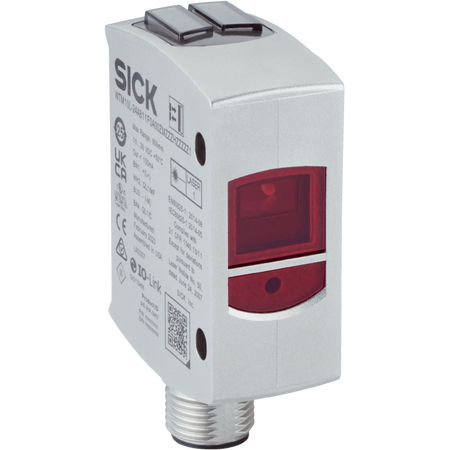

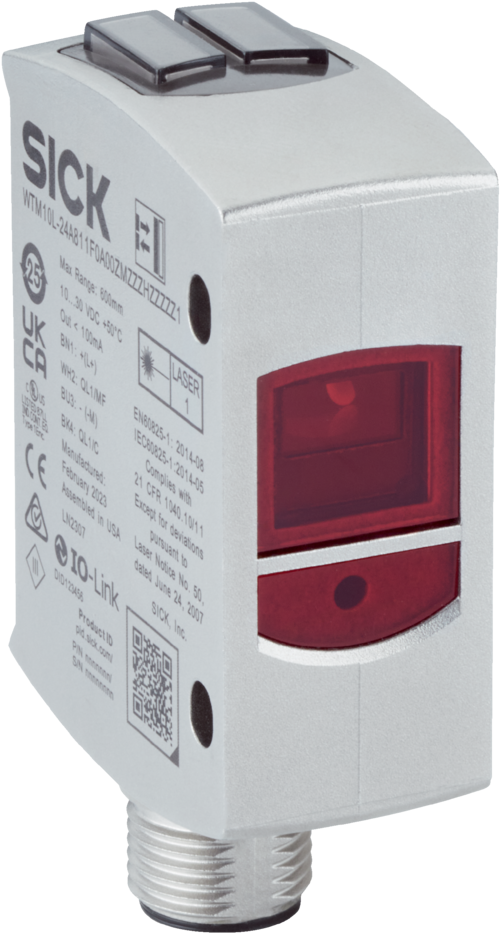

Photoelectric Proximity Sensor Background & Foreground Suppression Laser Light Source SICK
The photoelectric proximity sensor is designed for high-speed object detection with background and foreground suppression.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range min: 25 mm (Mode 1 - Speed)
- Sensing range max: 700 mm (Mode 3 - Precision)
- Resolution: 1 mm
- Repeatability: < 0.5%
- Accuracy: < 4%
- Light source: Laser, visible red light, wavelength 655 nm
- Beam shape: Point-shaped, Ø 0.4 mm at 250 mm
- Response time: 1.8 ms (Mode 1 - Speed) to 15 ms (Mode 3 - Precision)
- Switching frequency: up to 275 Hz
- Digital outputs: 2 push-pull, PNP/NPN configurable
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Protection class: III
- Enclosure rating: IP67 and IP69
- Operating temperature: -10 °C to +55 °C
- Communication: IO-Link V1.1 with 3.4 ms cycle time
- Dimensions (H x L x W): 57mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation with 1-point, 2-point, and manual teach-in
- Adjustable sensing range up to 700 mm depending on mode
- Visible red laser light source with point-shaped beam
- High repeatability and accuracy with 1 mm resolution
- IO-Link communication for sensor configuration and Smart Task functions
- Robust stainless steel V4A housing with IP67 and IP69 protection
- Dual push-pull digital outputs configurable as PNP/NPN
- Touch display for easy parameter setting
- Complies with laser safety standards IEC 60825-1
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, poorly remitting, and tilted objects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM10L-241611D0A00ZVZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
