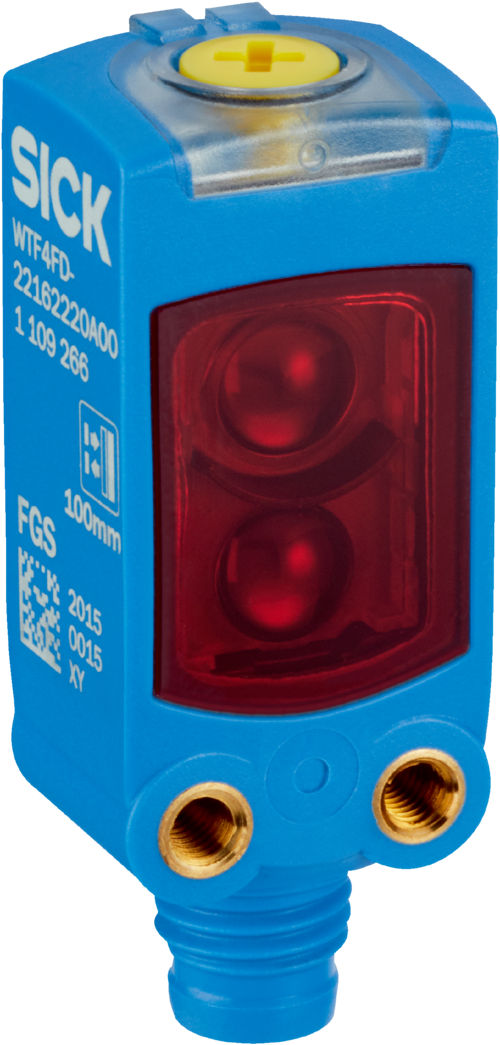

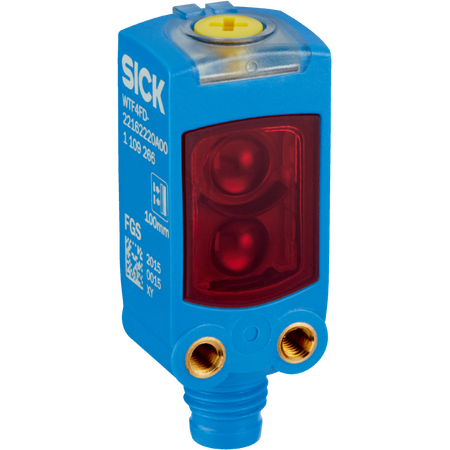

Photoelectric Proximity Sensor Foreground Suppression Adjustable Sensing Range SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Foreground Suppression Sensor, IO-Link Proximity Sensor, SICK Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with foreground suppression
- Sensing range: 0 mm to 100 mm, adjustable switching threshold 15 mm to 100 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 2 mm x 2 mm at 50 mm distance
- Response time: ≤ 650 µs
- Switching frequency: 750 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Communication: IO-Link V1.1 with COM2 (38.4 kBaud) data rate
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with foreground suppression
- Adjustable switching threshold for background suppression from 15 mm to 100 mm
- Sensing range from 0 mm to 100 mm, recommended 30 mm to 70 mm for best performance
- PinPoint LED light source with visible red light at 635 nm wavelength
- Rectangular light spot consisting of two parallel light spots
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link V1.1 interface for sensor parameter configuration and Smart Task functions
- High protection rating IP66 and IP67 for harsh environments
- Operating temperature range from -40 °C to +60 °C
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time ≤ 650 µs and switching frequency up to 750 Hz
- Complementary push-pull digital outputs (PNP/NPN) with light/dark switching
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections.
Applications
- Industrial automation for object detection
- Flat object detection in manufacturing processes
- Background suppression sensing in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTF4FD-22162220A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
