Photoelectric Proximity Sensor GRTB18S-N241Z IP67 Rated Fast Response Time SICK
The Photoelectric Proximity Sensor GRTB18S-N241Z is designed for industrial automation, featuring a sensing range of 20 mm to 150 mm and a fast response time of
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

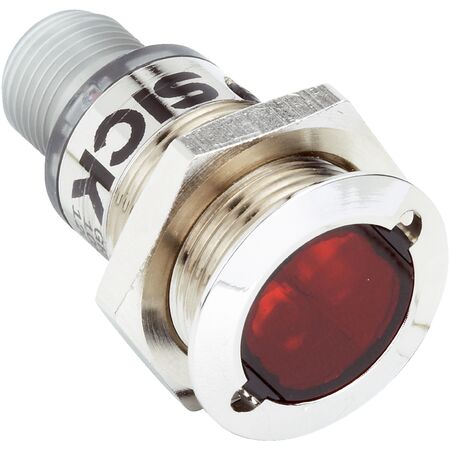

Product Name/Title: Photoelectric Proximity Sensor GRTB18S-N241Z | IP67 Rated | Fast Response Time | Background Suppression | by SICK
Brand: SICK
SKU: 1076109
Alternatively Known As: Photoelectric sensor, Proximity sensor, Background suppression sensor, M18 photoelectric sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Axial, fully flush optical axis
- Sensing range from 20 mm to 150 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Fast switching frequency of 1000 Hz and response time under 500 µs
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with electromagnetic compatibility standards to reduce interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18S-N241Z Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
