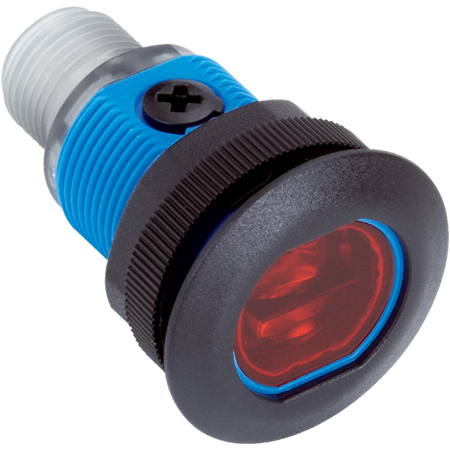

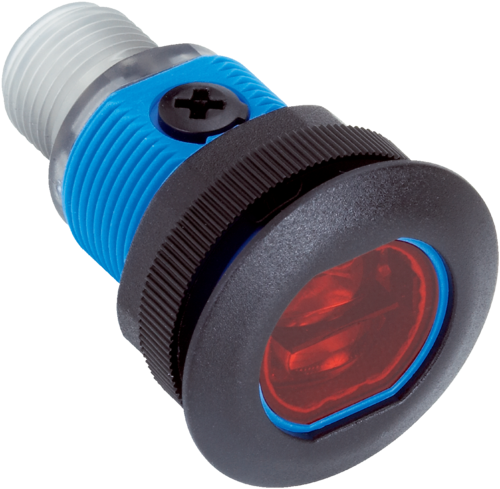

Photoelectric Proximity Sensor GRTB18S-P2317 IP67 Rated Fast Switching Frequency SICK
The GRTB18S-P2317 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 150 mm and a fast switching frequency
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor M18, Industrial photo sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Connection type: Connector M12, 3-pin
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- MTTFD: 985 years
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm, max 300 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- Robust plastic ABS housing with IP67 protection
- Fast switching frequency of 1,000 Hz and response time under 500 µs
- Connector M12, 3-pin for easy connection
- Wide operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18S-P2317 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
