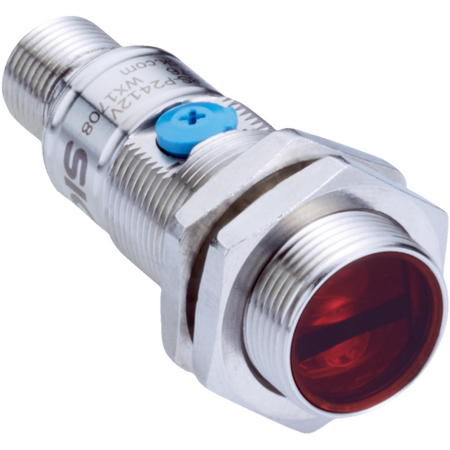

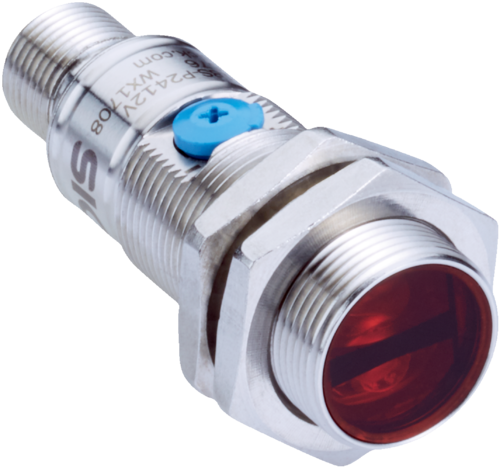

Photoelectric Proximity Sensor GRTB18S-P2412V Background Suppression IP67 IP68 IP69K Rated SICK
The GRTB18S-P2412V Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 150 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, M18 photoelectric sensor, Red light proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 56mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm
- Cylindrical stainless steel housing (M18 x 1)
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection
- High protection rating: IP67, IP68, IP69K
- Fast response time under 500 µs and switching frequency of 1,000 Hz
- Robust metal housing suitable for harsh environments
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GRTB18S-P2412V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
