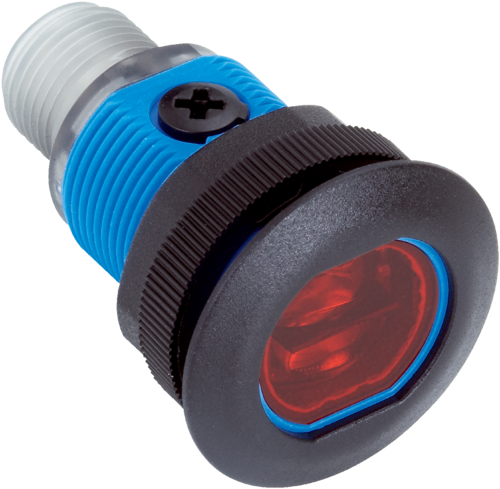

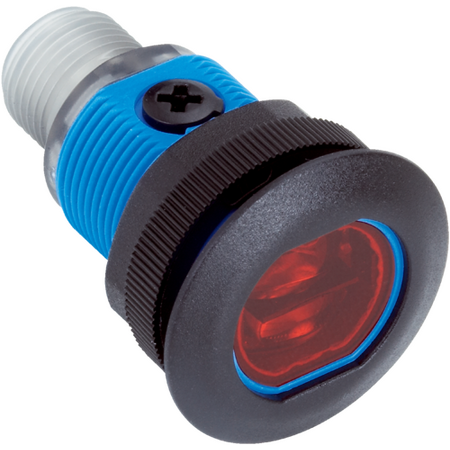

Photoelectric Proximity Sensor GRTB18S-P2417 Background Suppression IP67 Rated SICK
The GRTB18S-P2417 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 20 mm to 150 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor M18, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 150 mm
- Light source: PinPoint LED, visible red light at 650 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary output function
- Switching mode: Light/dark switching
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 38mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Sensing range from 20 mm to 150 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Robust plastic ABS housing with IP67 enclosure rating
- Fast response time under 500 µs and switching frequency up to 1,000 Hz
- Male M12 4-pin connector for easy connection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GRTB18S-P2417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
