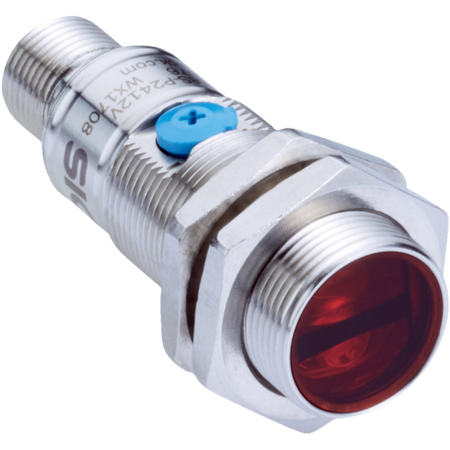

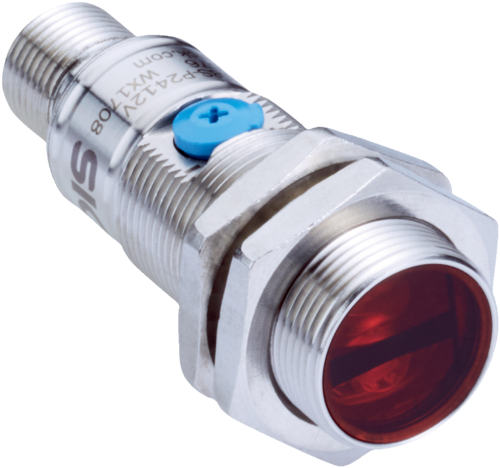

Photoelectric Proximity Sensor GRTE18S-P2442V IP67 IP68 IP69K Rated Fast Switching Frequency SICK
The GRTE18S-P2442V Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10 mm to 400 mm and a fast switching frequency
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor M18, Red light sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Connection type: Male M12, 4-pin connector
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +75 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 56mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Sensing range from 10 mm to 400 mm
- Potentiometer adjustment with 270° rotation
- LED indicators for power and object detection status
- Stainless steel V4A housing for durability and hygienic applications
- High protection rating: IP67, IP68, IP69K
- Fast switching frequency of 500 Hz and response time under 1 ms
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones requiring robust sensors
- Machine safety and process control
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- High ingress protection extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK GRTE18S-P2442V Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
