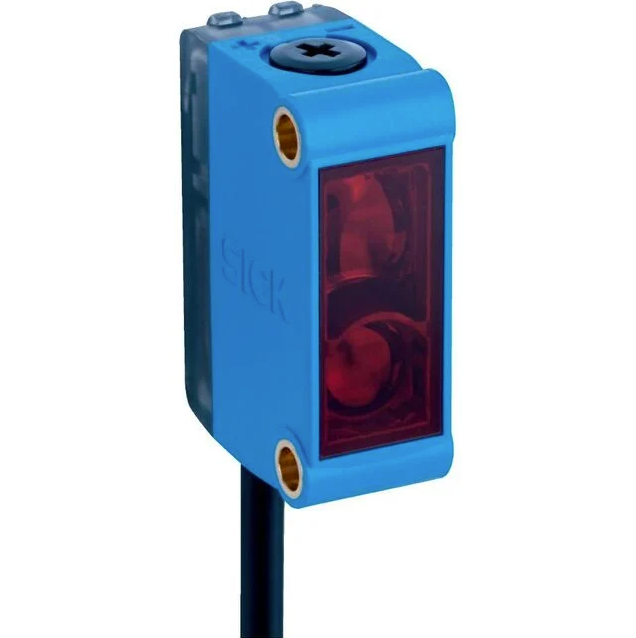

Photoelectric Proximity Sensor GTB6-P1211 Background Suppression IP67 Rated SICK

BRAND: SICK
SKU: 1052440
$386.80 List price: $486.20
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Proximity Sensor GTB6-P1211 is designed for industrial automation, featuring a sensing range from 35 mm to 140 mm and a maximum range of 250 mm.

Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK GTB6 Sensor, Industrial Proximity Sensor

Technical Specifications
  • Functional principle: Photoelectric proximity sensor with background suppression
  • Sensing range: 35 mm to 140 mm, maximum 5 mm to 250 mm
  • Light source: PinPoint LED, visible red light, wavelength 650 nm
  • Light spot size: Ø 6 mm at 100 mm distance
  • Supply voltage: 10 V DC to 30 V DC with ±10% ripple
  • Current consumption: 30 mA
  • Output type: PNP digital output with light/dark switching selectable
  • Output current max: ≤ 100 mA
  • Response time: < 625 µs
  • Switching frequency: 1,000 Hz
  • Protection class: III
  • Circuit protection: Types A, B, D
  • Housing material: Plastic ABS/PC, front screen PMMA
  • Cable: 3-wire, 2 m length, 0.14 mm² conductor size
  • Enclosure rating: IP67
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Dimensions (H x L x W): 31.5mm x 21mm x 12mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric proximity sensor with background suppression
  • Sensing range from 35 mm to 140 mm, max up to 250 mm
  • PinPoint LED visible red light with 650 nm wavelength
  • Mechanical spindle adjustment with 5 turns
  • High switching frequency of 1,000 Hz and fast response time under 625 µs
  • IP67 rated enclosure for dust and water protection
  • Robust plastic housing made of ABS/PC with PMMA front screen
  • Cable connection with 3-wire, 2 m length
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Safety and monitoring in machinery
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable design minimizes waste and replacement frequency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK GTB6-P1211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
