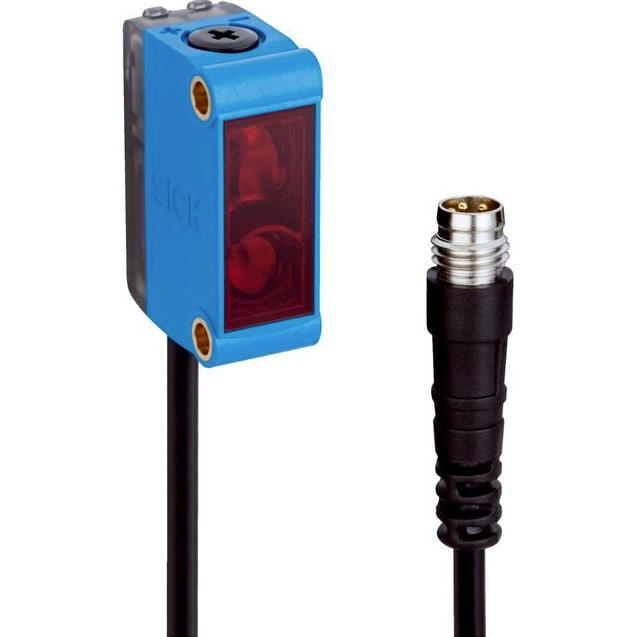

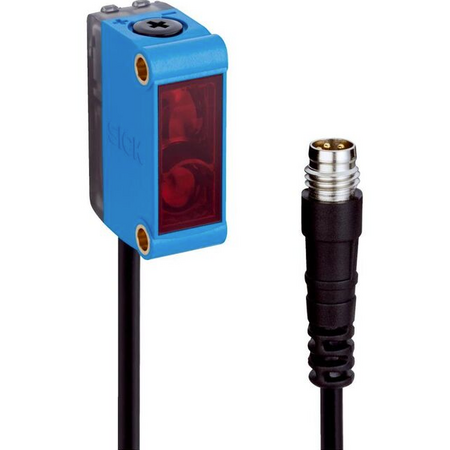

Photoelectric Proximity Sensor GTB6-P5211 Background Suppression IP67 Rated SICK
The Photoelectric Proximity Sensor GTB6-P5211 is designed for industrial automation, featuring a sensing range of 35 mm to 140 mm and a high switching frequency of
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK GTB6 sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 35 mm to 140 mm (max 5 mm to 250 mm)
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Mechanical spindle, 5 turns
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Output type: PNP digital output with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: < 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PC with PMMA front screen
- Connection: Cable with M8, 3-pin connector, 300 mm length
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 35 mm to 140 mm, max up to 250 mm
- Visible red light PinPoint LED with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Light/dark switching mode selectable via selector
- Cable with M8, 3-pin connector, 300 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GTB6-P5211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
