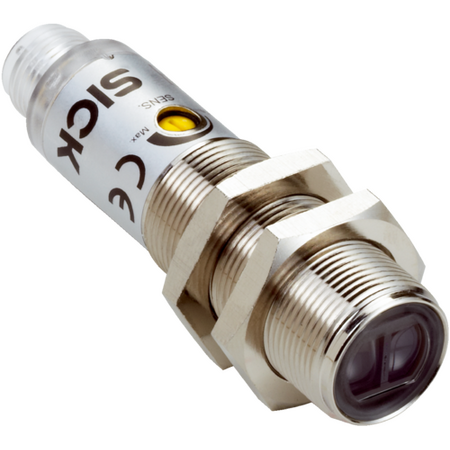

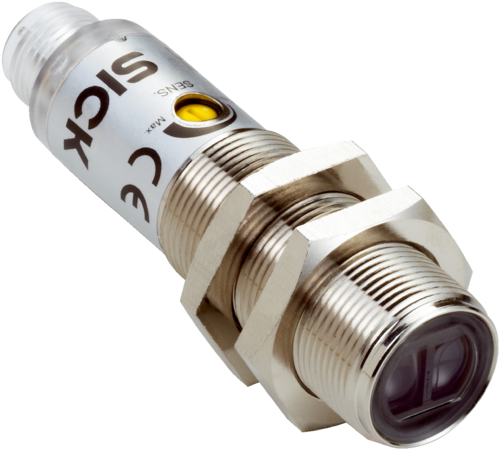

Photoelectric Proximity Sensor VTB180-2P42412 Background Suppression IP67 Rated SICK

BRAND: SICK
SKU: 6043870
$374.90 List price: $471.20
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Proximity Sensor VTB180-2P42412 is designed for precise object detection in industrial automation
Technical Specifications
  • Functional principle: Photoelectric proximity sensor with background suppression
  • Sensing range: 30 mm to 200 mm (max 350 mm)
  • Light source: Visible red LED, wavelength 632 nm
  • Focus and angle of dispersion: Approx. 2.8°
  • Supply voltage: 10 V DC to 30 V DC with ±10% ripple
  • Current consumption: 35 mA
  • Switching output: PNP, light/dark switching selectable
  • Output current max: ≤ 100 mA
  • Response time: ≤ 1 ms
  • Switching frequency: 500 Hz
  • Connection: Male M12, 4-pin connector
  • Protection class: III
  • Housing material: Nickel-plated brass and polycarbonate
  • Optics material: PMMA plastic
  • Enclosure rating: IP67
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -40°C to +70°C
  • Dimensions (H x L x W): 18mm x 50mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric proximity sensor with background suppression
  • Visible red light LED with wavelength 632 nm
  • Sensing range from 30 mm to 200 mm, max 350 mm
  • Cylindrical metal housing with M18 x 1 thread
  • IP67 rated for dust and water protection
  • Fast response time ≤ 1 ms and switching frequency 500 Hz
  • Selectable light/dark switching mode via control cable
  • Potentiometer adjustment with 4 turns for sensing range
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Material handling and packaging systems
  • Safety and monitoring in machinery
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable metal housing extends product lifespan, reducing waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK VTB180-2P42412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
