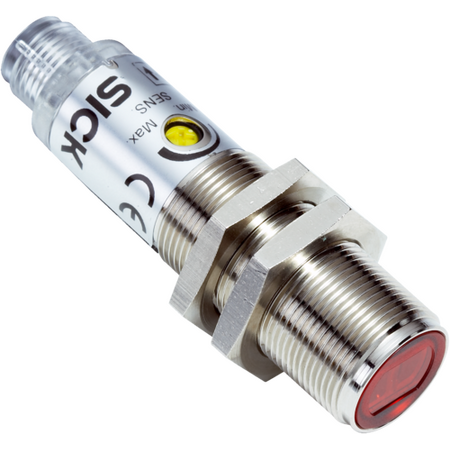

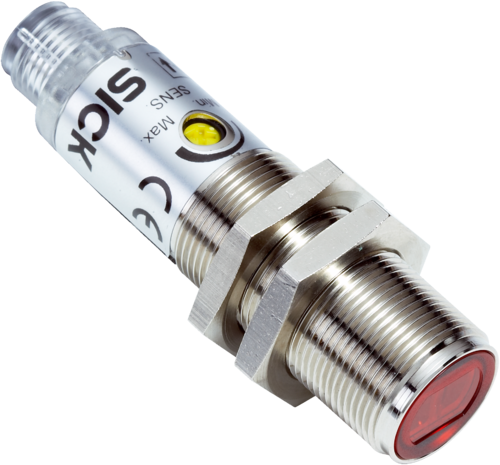

Photoelectric Proximity Sensor VTE180-2P42442 IP67 Rated Fast Response Time SICK

BRAND: SICK
SKU: 6041807
$263.30 List price: $331.00
+ −
30 Days Return Electricians Unlock Trade Access
The VTE180-2P42442 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation
Technical Specifications
  • Functional principle: Energetic photoelectric proximity sensor
  • Sensing range: 1 mm to 350 mm (max 500 mm)
  • Light source: LED, visible red light at 645 nm wavelength
  • Focus angle: Approx. 1.5°
  • Supply voltage: 10 V DC to 30 V DC with ±10% ripple
  • Current consumption: 30 mA
  • Switching output: PNP with max output current ≤ 100 mA
  • Switching mode: Light/dark selectable via control cable
  • Response time: ≤ 0.5 ms
  • Switching frequency: 1000 Hz
  • Connection: Male M12, 4-pin connector
  • Protection class: III
  • Enclosure rating: IP67
  • Housing material: Nickel-plated brass and polycarbonate
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • Dimensions (H x L x W): 18mm x 70mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric proximity sensor with energetic functional principle
  • Visible red light LED with wavelength of 645 nm
  • Sensing range from 1 mm to 350 mm (max 500 mm)
  • Cylindrical metal housing with nickel-plated brass and PC
  • IP67 rated enclosure for dust and water protection
  • Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
  • Selectable light/dark switching mode via control cable
  • Connection via male M12, 4-pin connector
  • Potentiometer adjustment with 270° range for sensing distance
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
  • Industrial automation for object detection
  • Position sensing in manufacturing lines
  • Safety and monitoring in machinery
  • Material handling and packaging systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Energy-efficient LED light source reduces power consumption
  • Durable metal housing extends product lifespan, reducing waste
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK VTE180-2P42442 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
