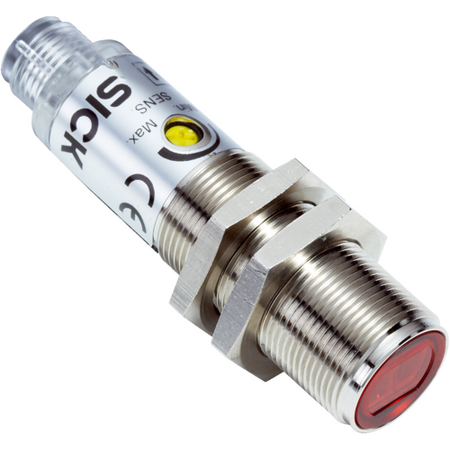

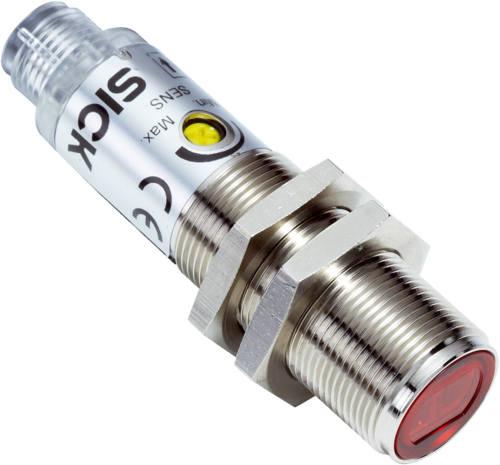

Photoelectric Proximity Sensor VTF180-2P42412 Background Blanking IP67 Rated (1 mm to 100 mm Sensing Range) SICK
The Photoelectric Proximity Sensor VTF180-2P42412 is designed for precise object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: Visible red LED, 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark switching selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Nickel-plated brass and PC
- Optics material: Plastic PMMA
- Weight: 47 g
- Includes fastening nuts (2x)
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Adjustable sensing range via 270° potentiometer
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and plastic optics
- Selectable light/dark switching mode via control cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2P42412 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
