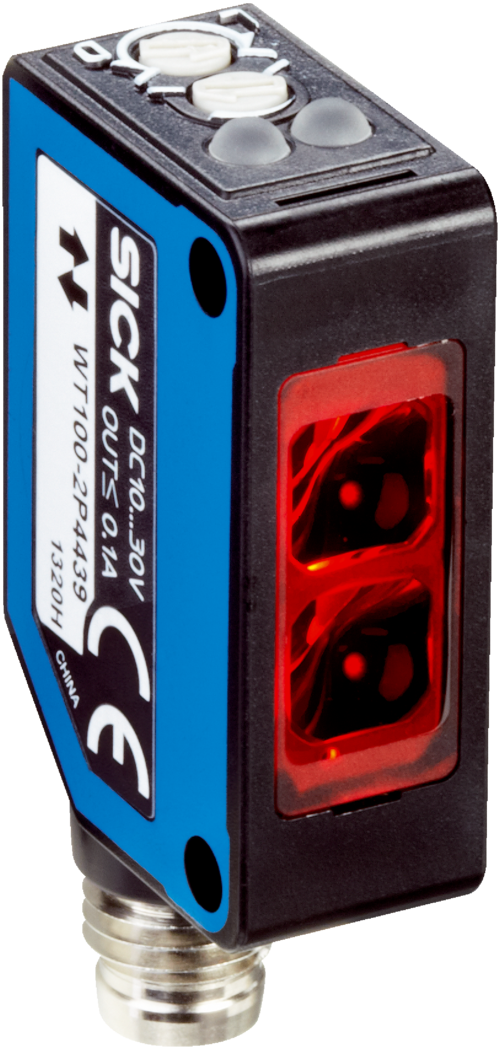

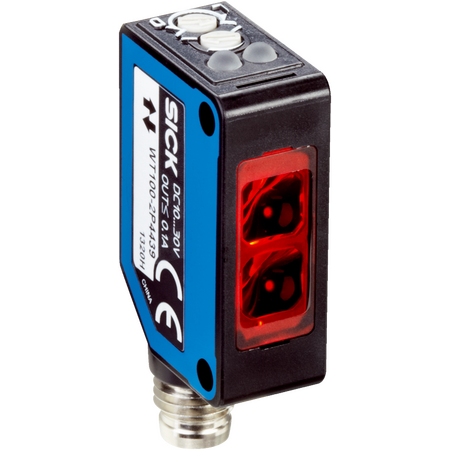

Photoelectric Proximity Sensor WT100-2P4439 IP67 Rated Fast Response Time ≤ 0.5 ms SICK

BRAND: SICK
SKU: 6052374
$258.80 List price: $325.30
+ −
30 Days Return Electricians Unlock Trade Access
The Photoelectric Proximity Sensor WT100-2P4439 is designed for industrial automation, featuring a sensing range of up to 1200 mm and a fast response time of ≤ 0.5
Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 30 mA
  • Switching output: PNP with max output current ≤ 100 mA
  • Switching mode: Light/dark selectable via rotary switch
  • Response time: ≤ 0.5 ms
  • Switching frequency: 1000 Hz
  • Connection type: Male M8, 4-pin connector
  • Protection class: III
  • Enclosure rating: IP67
  • Housing material: Plastic (ABS/PC/POM)
  • Optics material: Plastic (PMMA)
  • Ambient operating temperature: -25°C to +55°C
  • Ambient storage temperature: -40°C to +70°C
  • Light wavelength: 632 nm
  • Light spot size at 1000 mm: Ø 75 mm
  • Circuit protection: Types A, B, D
  • Dimensions (H x L x W): 31mm x 20mm x 11mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric proximity sensor with energetic functional principle
  • Rectangular housing design with visible red LED light source
  • Sensing range up to 1200 mm, adjustable via potentiometer
  • High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
  • IP67 rated enclosure for dust and water protection
  • Selectable light/dark switching mode with PNP output
  • Robust plastic housing made of ABS/PC/POM and optics of PMMA
  • Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Safety and monitoring in machinery
  • Material handling and packaging systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption with 30 mA current draw
  • Durable design reduces waste and replacement frequency
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK WT100-2P4439 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
