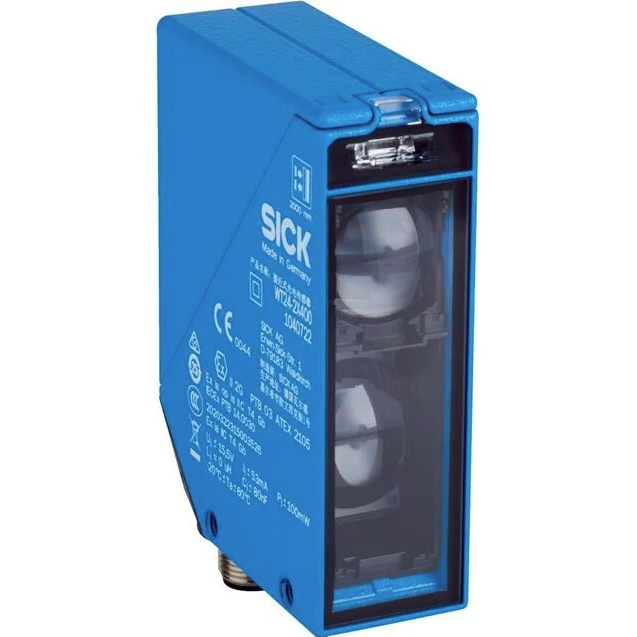

Photoelectric Proximity Sensor WT24-2X400 Background Suppression IP67 Rated SICK
The WT24-2X400 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 40 mm to 2000 mm and a robust IP67 rating for
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, Infrared proximity sensor, NAMUR sensor, Explosion-proof proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 40 mm to 2000 mm
- Light type: Infrared LED
- Light spot size: Ø 50 mm at 2000 mm
- Supply voltage: 5 V DC to 15.5 V DC
- Switching output: NAMUR
- Switching mode: Light switching
- Response time: ≤ 10 ms
- Switching frequency: 50 Hz
- Connection: Male connector M12, 4-pin
- Protection class: II
- Enclosure rating: IP67
- Housing material: Metal, zinc diecast
- Optics material: Glass
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +70 °C
- ATEX marking: II 2G Ex ia op is IIC T4 Gb
- Certifications: PTB 03 ATEX 2105, IECEx PTB 14.0030
- Dimensions (H x L x W): 87.5mm x 65mm x 27mm
- Weight: 0.33 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal zinc diecast housing with glass optics
- Sensing range from 40 mm up to 2000 mm
- Infrared LED light source with Ø 50 mm light spot at 2000 mm
- Potentiometer adjustment for sensitivity
- NAMUR switching output with light switching mode
- High protection rating IP67 suitable for harsh environments
- Certified for explosive areas with ATEX and IECEx approvals
- Fast response time ≤ 10 ms and switching frequency 50 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ATEX and IECEx certified equipment to ensure safety and compliance in explosive environments.
Applications
- Industrial automation for object detection
- Explosive area sensing applications
- Machine safety and control systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with input power max 100 mW
- Durable metal housing extends product life reducing waste
- Certified compliance with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT24-2X400 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and explosive area applications.
