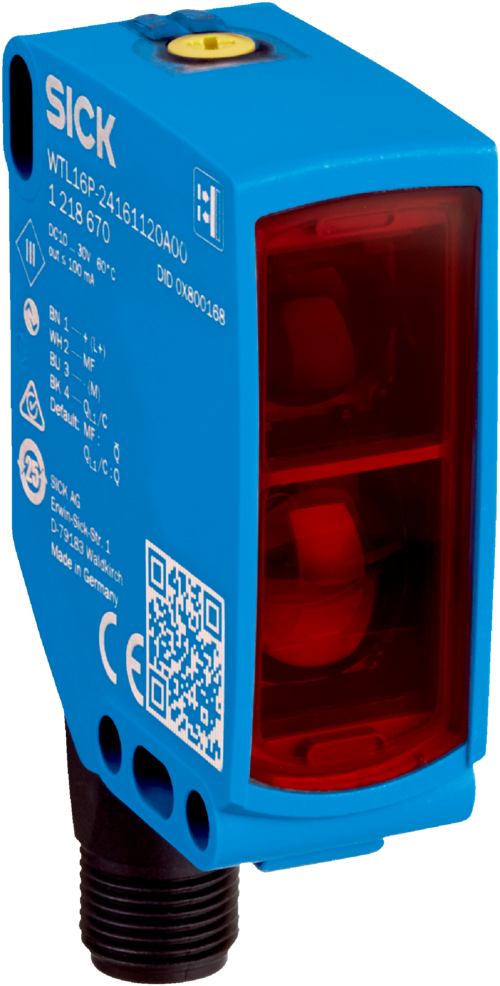

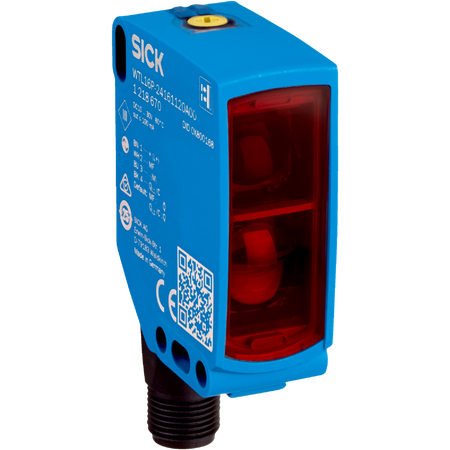

Photoelectric Proximity Sensor WTB16I-24161120A00 Adjustable Sensing Range Infrared LED Light Source SICK
The WTB16I-24161120A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 12 mm at 800 mm distance
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Material: Plastic housing (VISTAL®), front screen PMMA
- Connection: Male M12, 4-pin connector
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 10 Hz to 2000 Hz, amplitude 0.5 mm / 10 g
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm distance
- BluePilot teach-turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High shock and vibration resistance
- IP66, IP67, and IP69 rated enclosure for harsh environments
- Dual complementary push-pull digital outputs with light/dark switching
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Robotics and manufacturing lines requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16I-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
