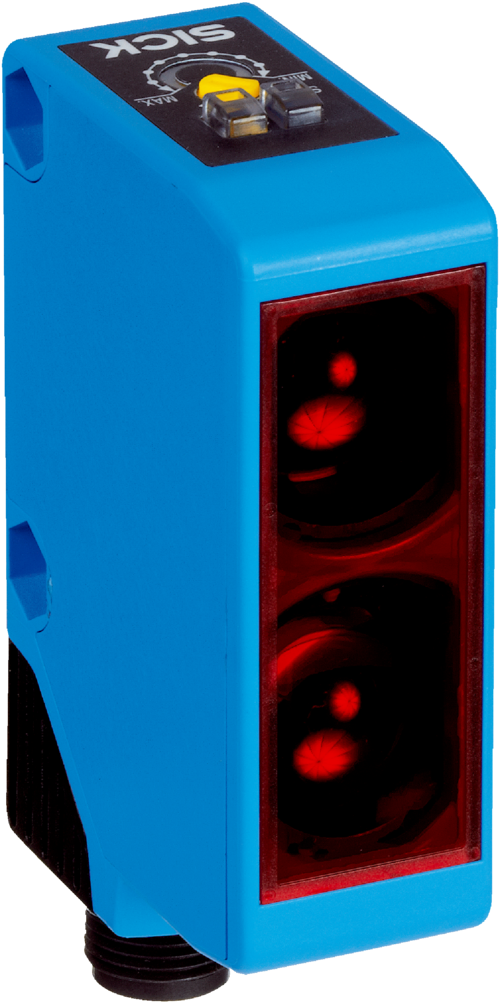

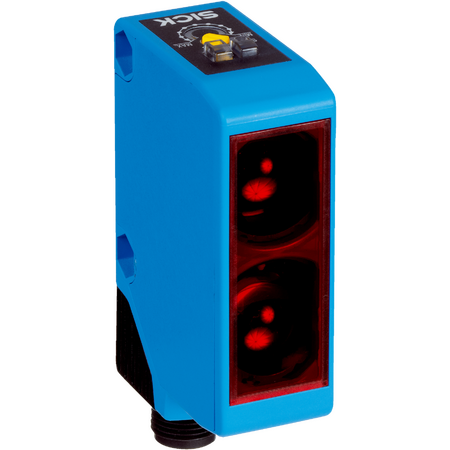

Photoelectric Proximity Sensor WTB250-2P2451 Background Suppression IP67 Rated SICK

BRAND: SICK
SKU: 6044692
$684.30 List price: $860.10
+ −
30 Days Return Electricians Unlock Trade Access
The WTB250-2P2451 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 200 mm to 1000 mm and a fast response time of ≤
Technical Specifications
  • Functional principle: Photoelectric proximity sensor with background suppression
  • Sensing range: 200 mm to 1000 mm
  • Light source: Visible red LED
  • Focus and angle of dispersion: Approx. 3°
  • Supply voltage: 10 V DC to 30 V DC
  • Current consumption: 35 mA
  • Switching output: PNP, max output current ≤ 100 mA
  • Switching mode: Light/dark switching selectable
  • Response time: ≤ 3 ms
  • Switching frequency: 160 Hz
  • Connection: Male M12, 4-pin connector
  • Protection class: III
  • Enclosure rating: IP67
  • Housing material: Plastic ABS
  • Optics material: Plastic PMMA
  • Operating temperature: -25 °C to +55 °C
  • Storage temperature: -40 °C to +70 °C
  • EMC compliance: EN 60947-5-2
  • Includes BEF-W250 mounting bracket
  • Dimensions (H x L x W): 65mm x 44mm x 20mm
  • Weight: 0.1 kg
Key Features
  • Photoelectric proximity sensor with background suppression
  • Rectangular housing design with visible red LED light source
  • Sensing range from 200 mm to 1000 mm with approx. 3° focus and angle of dispersion
  • Potentiometer adjustment with 2 turns for sensitivity tuning
  • Light/dark switching mode selectable via control cable
  • High switching frequency of 160 Hz and fast response time ≤ 3 ms
  • IP67 rated enclosure for dust and water protection
  • Robust plastic ABS housing and PMMA optics material
  • Includes BEF-W250 mounting bracket
  • Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation for object detection
  • Manufacturing process control
  • Safety and monitoring in machinery
  • Material handling and packaging systems
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low power consumption with 35 mA current draw
  • Durable design reduces replacement frequency and waste
  • Complies with China-RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK WTB250-2P2451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
