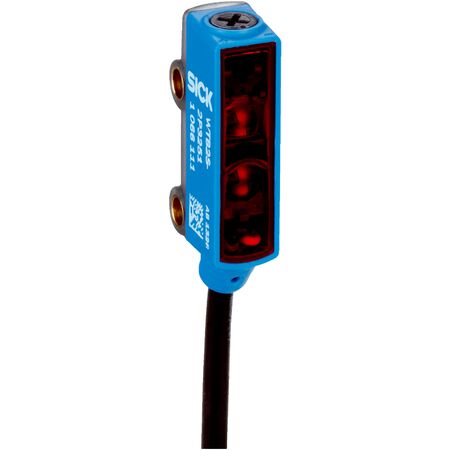

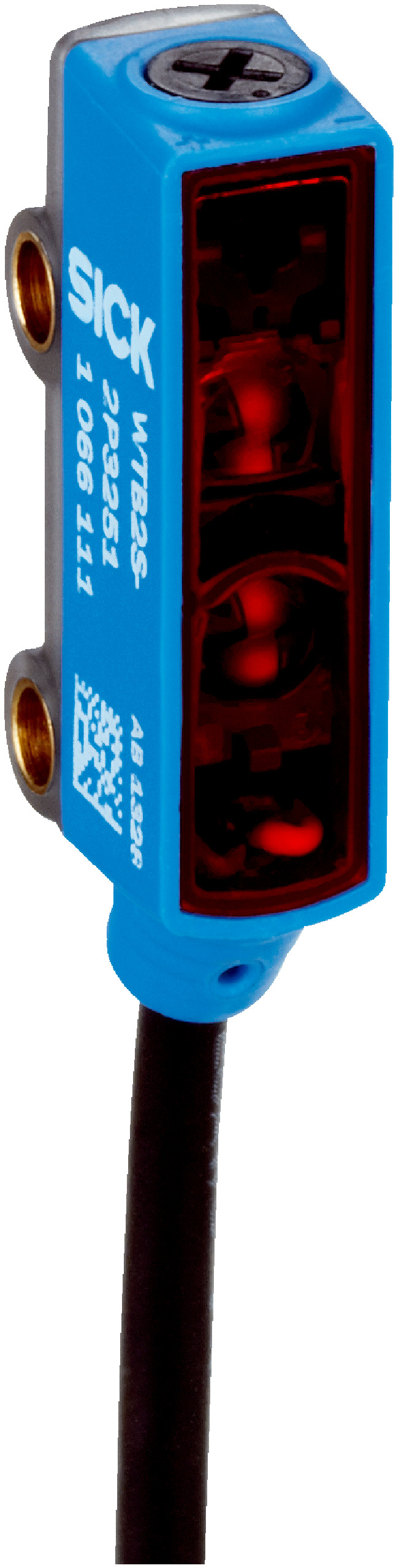

Photoelectric Proximity Sensor WTB2S-2N1151S43 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTB2S-2N1151S43 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression for precise object detection. With a sensing range of 18 mm to 110 mm and a fast response time of under 1 ms, it’s perfect for manufacturing lines and quality control systems. The durable IP67 rated housing ensures reliable performance in challenging environments, making it an ideal choice for automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 18 mm to 110 mm (max 1 mm to 150 mm)
- Light source: PinPoint LED, visible red light at 640 nm wavelength
- Light spot size: Ø 3.5 mm at 50 mm distance
- Adjustment: Potentiometer with 3 turns
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 50 mA
- Response time: < 1 ms
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Circuit protection: Types A, B, D
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED light source
- Increased sensitivity for better detection of low remission objects
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 1 ms and switching frequency of 500 Hz
- NPN switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Object detection in manufacturing lines
- Quality control systems requiring precise sensing
- Automation systems needing background suppression sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB2S-2N1151S43 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
